User’s Guide to VelocityDB (Tuesday, September 14, 2021)
This guide compliments the sample programs, VelocityDB Quick Start, VelocityGraph
Quick Start and the API
reference provided on our site. Developers should review this in order to
better understand how to a build a VelocityDB-integrated application.
Contents
Windows: Download and install a .NET
development environment 5
Mac (and partly Linux): Download and
install a .NET development environment 5
Open the VelocityDB repository in
Visual Studio. 7
Opening the samples solution,
VelocityDB.sln. 9
SampleData. 10
Using VelocityDB and VelocityGraph
NuGets. 10
If not using our NuGets, manually add
project reference to VelocityDB.dll 12
NuGet packages for solution. 12
Add reference to System.Transactions. 13
GitHub. 14
Selecting the correct VelocityDB
Session Class. 14
Using database worker thread to speed
up ingest/update of data. 15
Concurrent access to database data. 15
Optimistic locking versus Pessimistic
locking. 15
SessionPool class. 16
Composite Object Identifier. 16
DatabaseLocation. 17
Moving/Copying Databases in a
DatabaseLocation to a different Host/Directory. 17
Page Compression. 17
Encrypt Page data. 18
Databases. 18
Compacting Databases. 19
VelocityDB license database. 19
Replication. 19
Storing Databases in the Cloud. 19
Microsoft Azure. 19
ServiceFabric Remoting. 20
Accessing remote databases without
using VelocityDBServer. 20
Pages. 20
Transactions. 20
Try Catch blocks around all
transactions. 21
Why we need transaction for reads. 21
Enabling recovery check for read
transactions. 21
Event subscription and notification. 21
How to enable persistent objects of
some class. 22
Implementing ISerializable. 22
Collections using
OptimizedPersistable.Equals and GetHashCode. 23
DateTime. 23
Database Schema. 23
Register all types that you plan on
persisting. 24
If your
application schema is using indexes. 24
Fixed
size class instances and limiting string size. 25
Adding
or removing field(s) from a class with existing objects in a database. 26
Changing a field type without losing
already persisted data. 26
Renaming a persisted class or moving
it to a different namespace. 26
VelocityGraph. 27

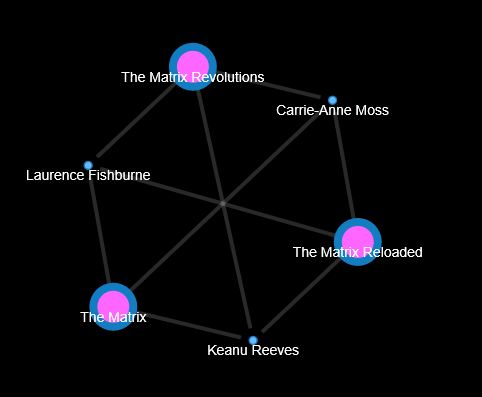

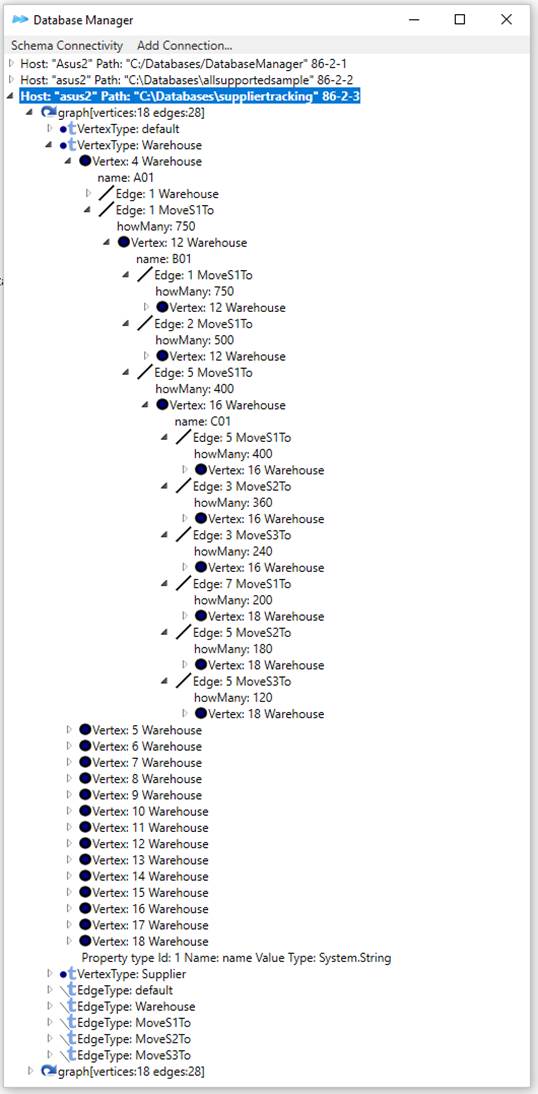

Visualizing a VelocityGraph. 27
Persistent placement of objects. 30
Best way to persist an object 30
Customizing object placement (most of
you can skip this part) 31
Controlling placement of objects
persisted by reachability. 32
Looking up objects. 32
DO NOT reference persistent data using
static variables. 33
Updating persistent objects. 33
Deleting (unpersisting) persistent
objects. 34
Referential integrity. 34
Collection Classes. 35
List<T> vs
VelocityDbList<T>. 35
Avoid using Dictionary, HashSet and
any other ISerializable classes. 35
Using the provided BTree collections. 36
BTreeMap<Key,
Value>.. 37
Indexes. 37
Using a worker thread to add indexed
objects to its indices. 37
Class level index. 37
Using a
class level index. 38
Index
by a field. 38
Using the index by field in a LINQ
query. 38
Changing indexing for a class after
objects of that type already persisted. 39
System.OutOfMemoryException. 40
Limiting graph of objects in memory. 41
Implementing your own classes with
weak references. 41
Using only weak references between
objects. 42
Lazy load of object references. 42
Specifying depth to load at object
open. 42
Session caching of databases, pages
and slots. 42
Diagnostics. 43
Handling exceptions thrown by
VelocityDB. 43

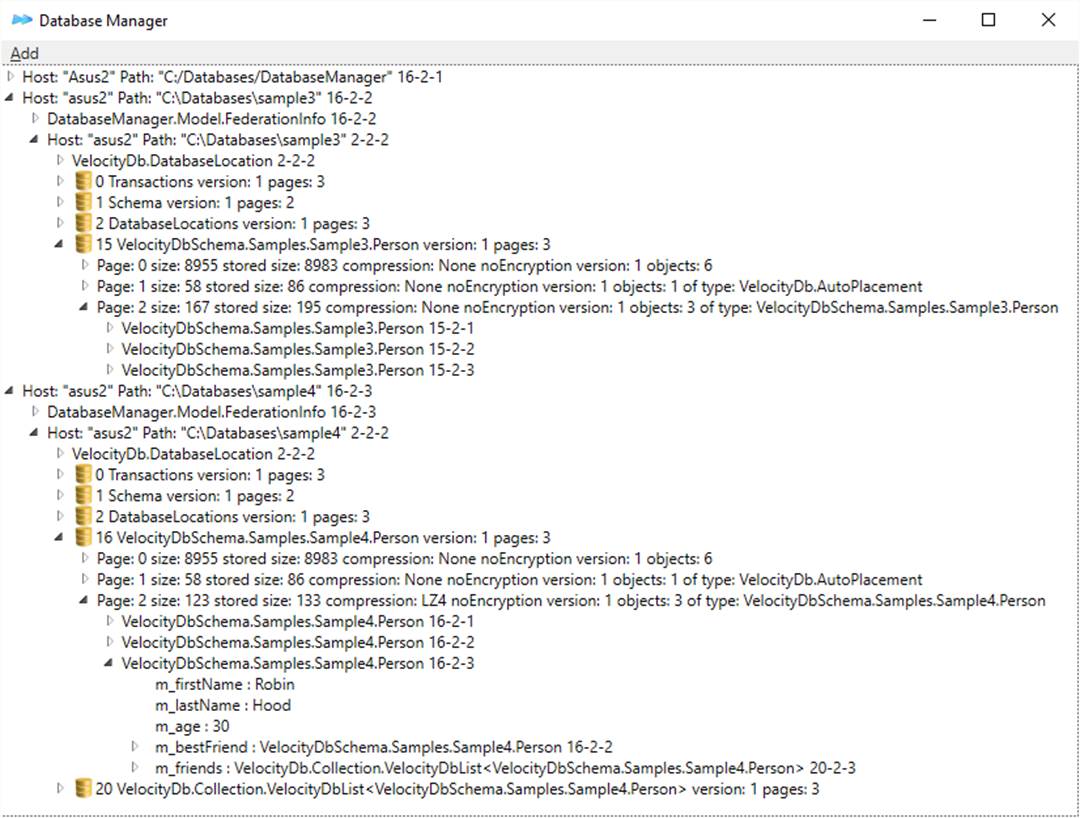

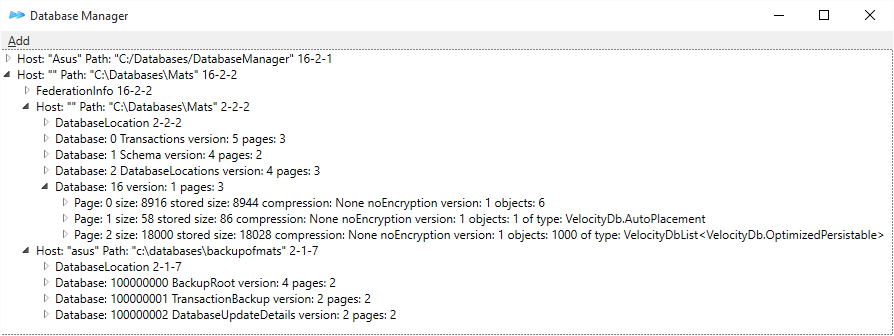

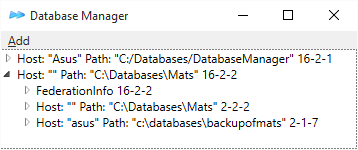

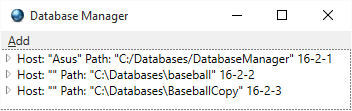

Database Manager. 44
Starting Database Manager. 45
Objects are initially lazy loaded. 45

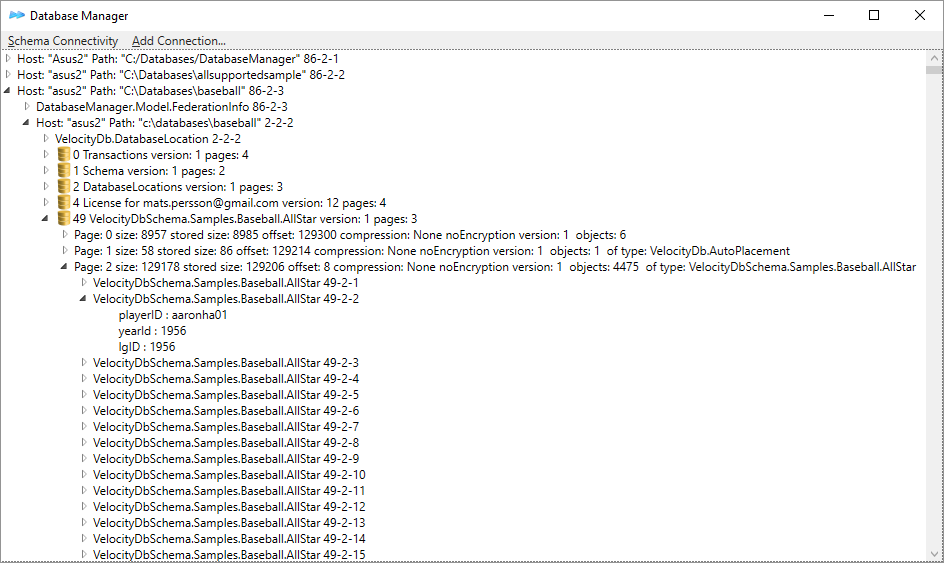

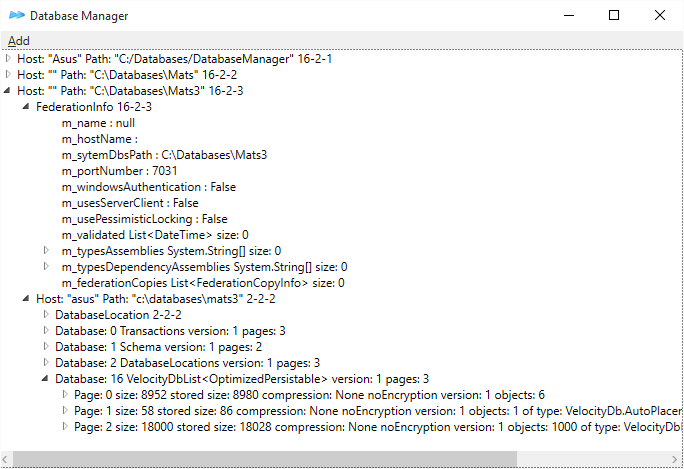

Browsing objects created by Baseball
sample application. 45

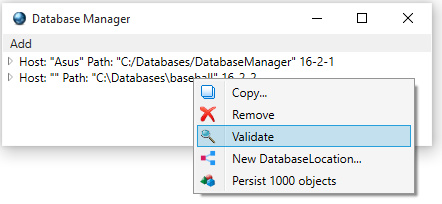

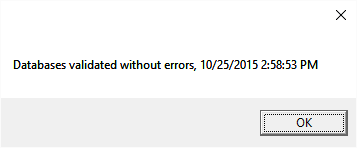

Validating Objects in your databases. 47

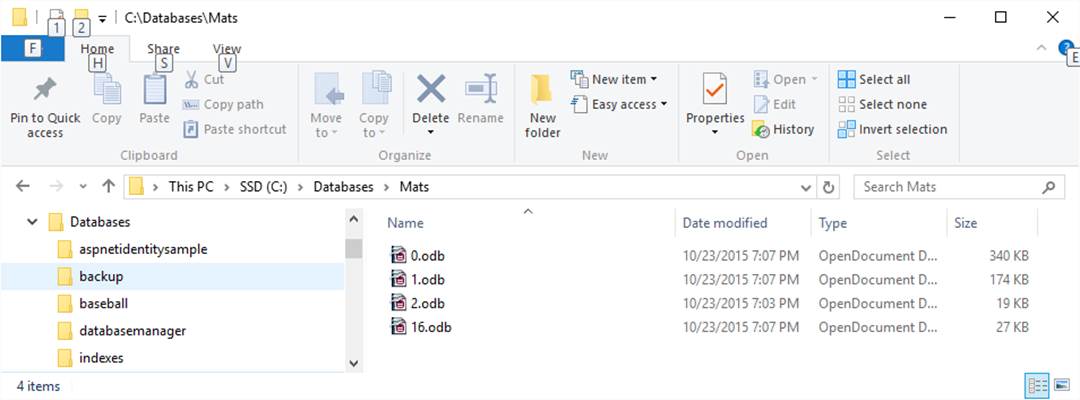

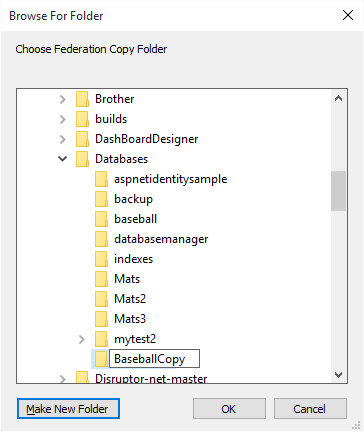

Backing up (copy) all your database
files. 48

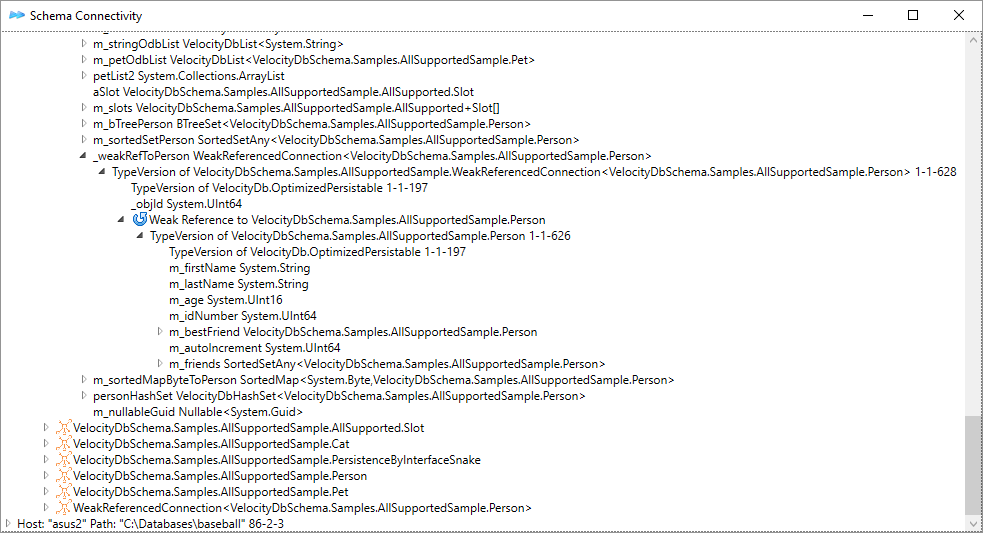

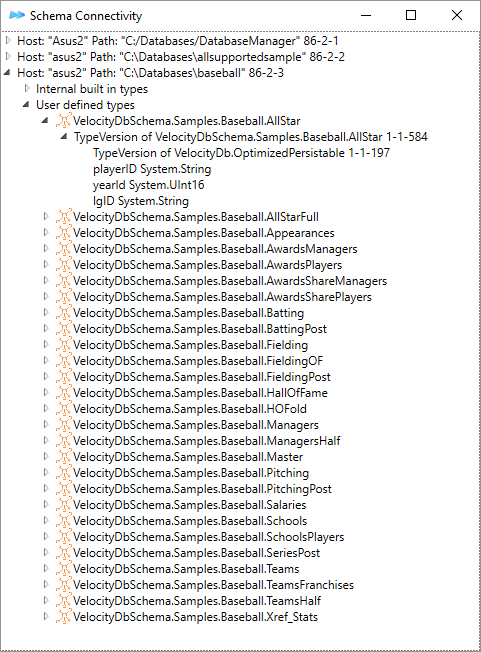

Database Schema Connections. 49

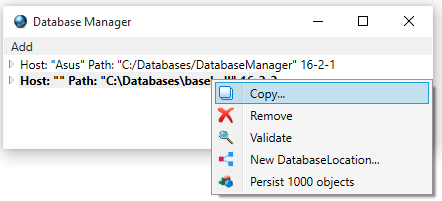

Backup & Restore using Database
Manager. 50
Create Database. 50

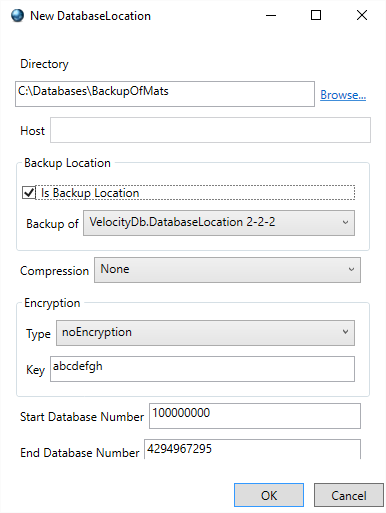

Create a backup Database Location. 51

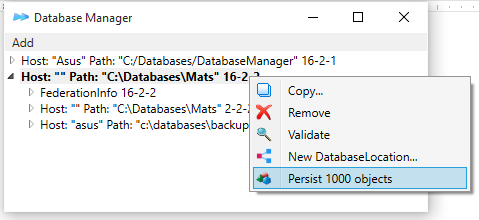

Create some persistent objects. 53

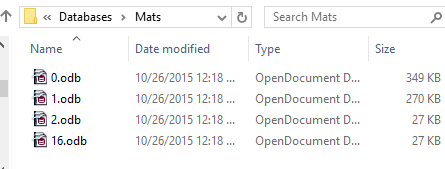

Simulate loosing files in original
DatabaseLocation. 53

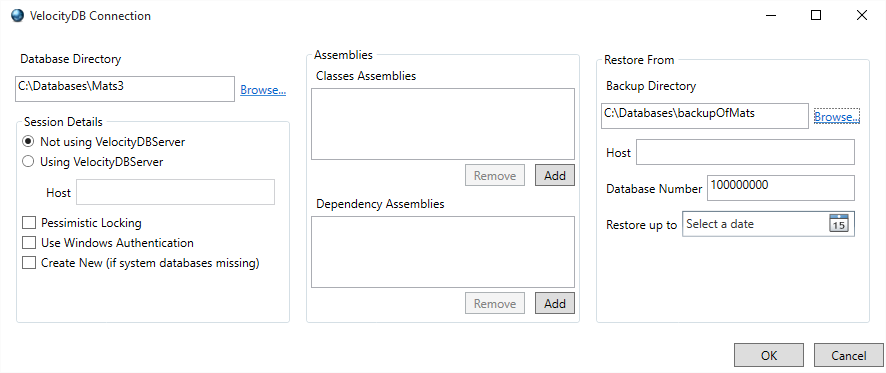

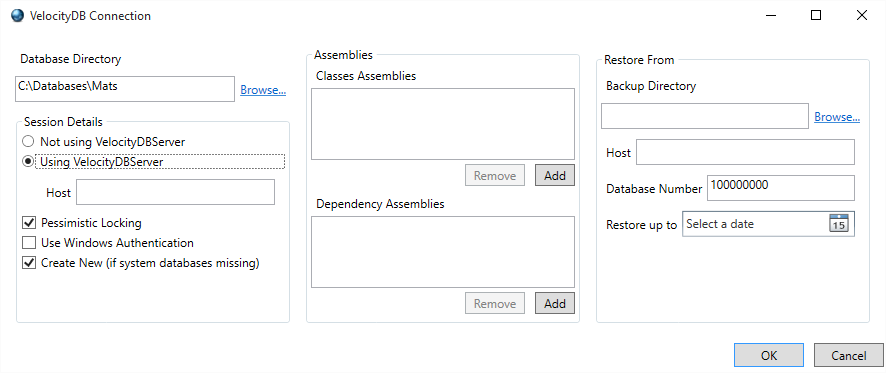

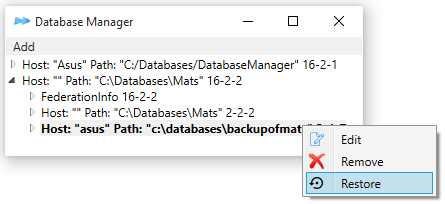

Restore these databases from backup
DatabaseLocation. 54
Restore a backup DatabaseLocation to a
brand new directory. 55

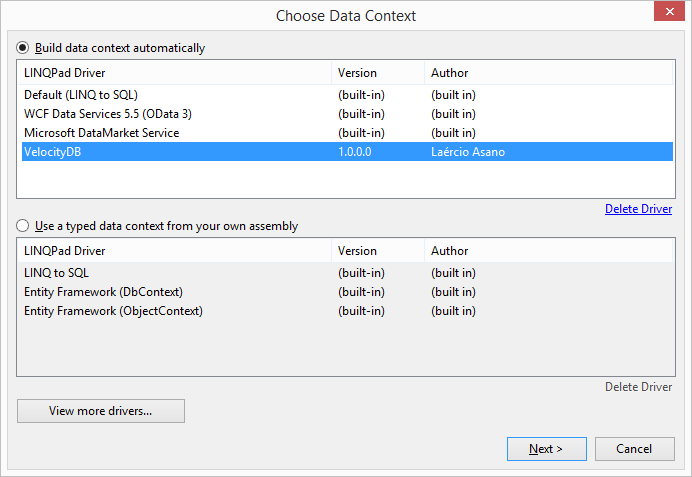

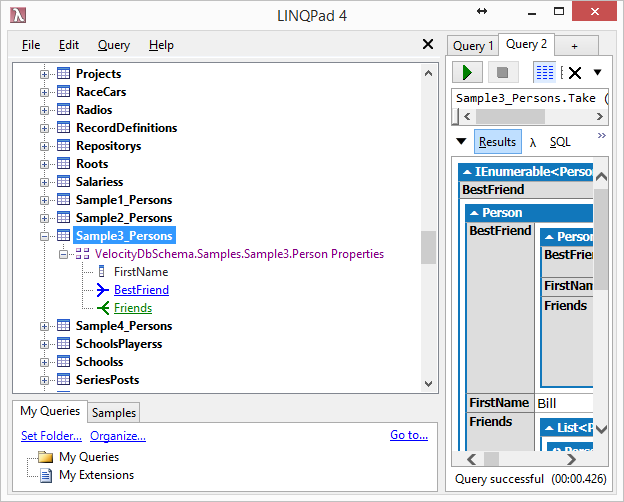

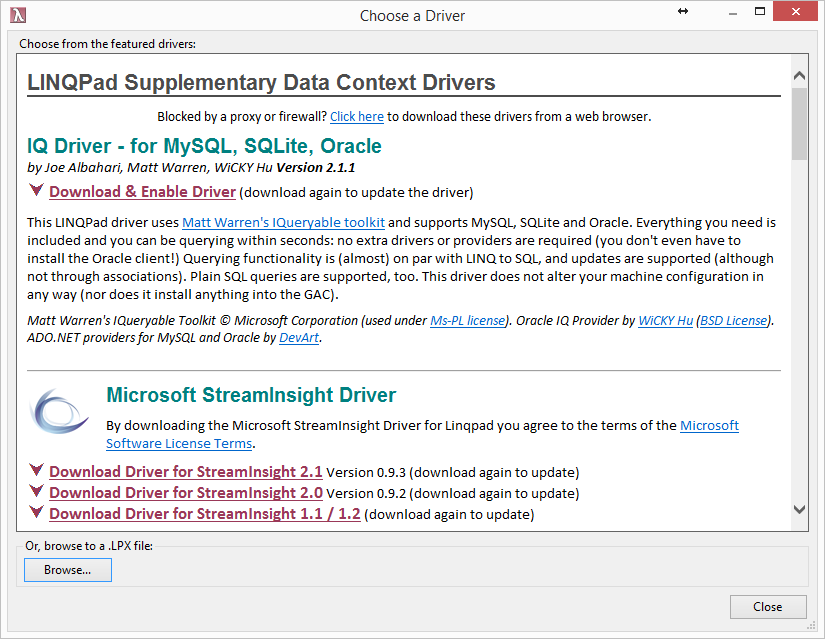

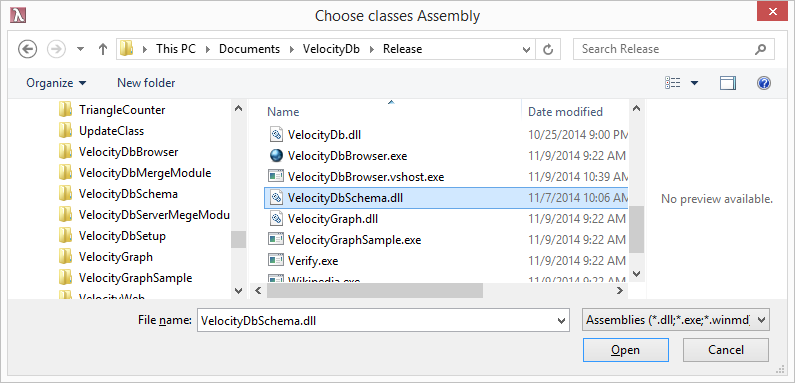

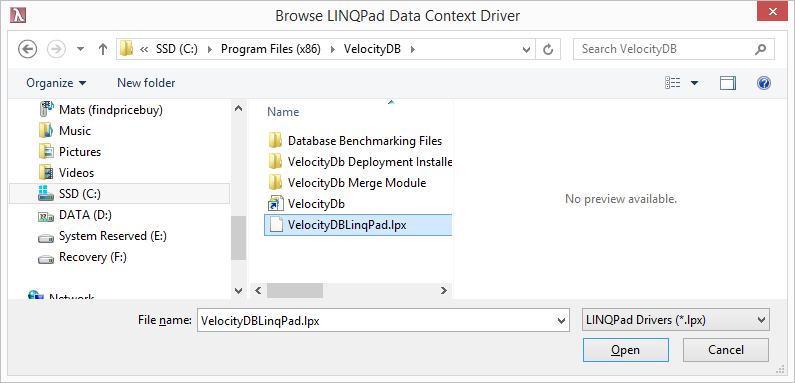

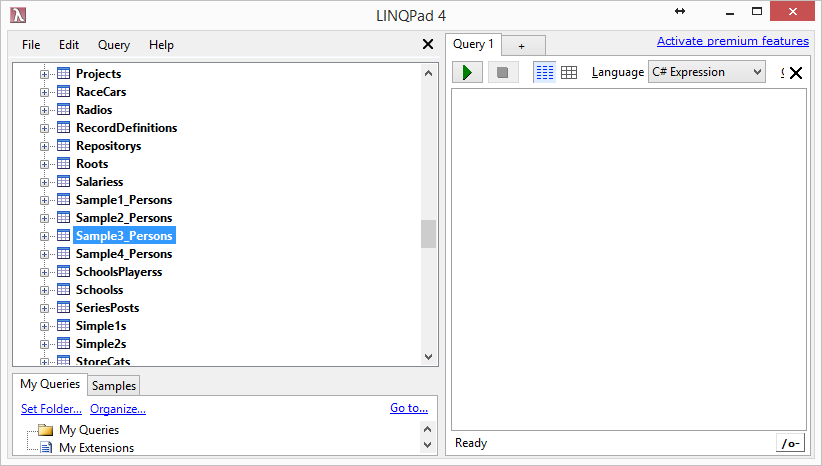

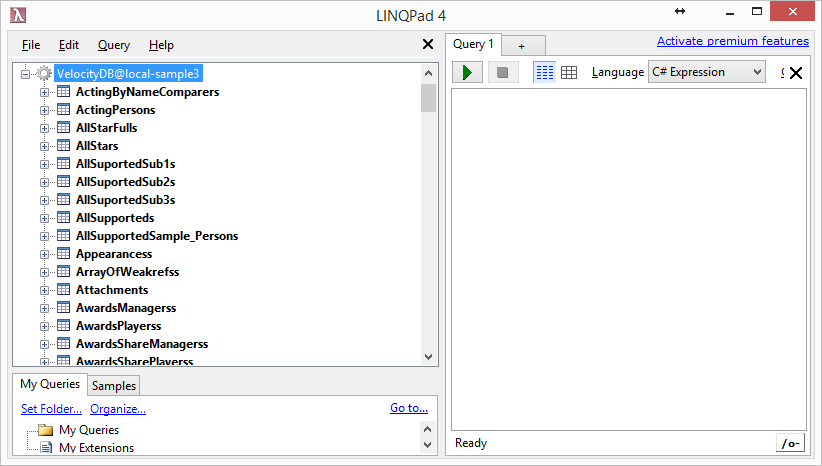

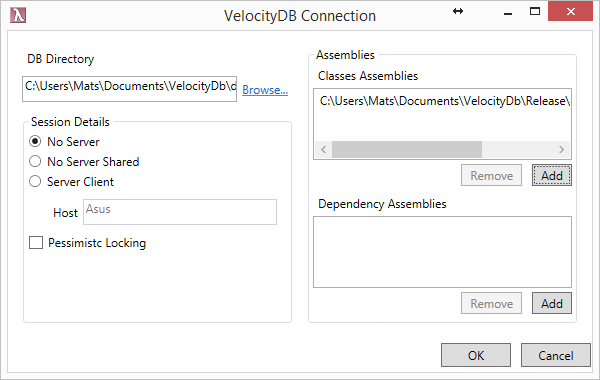

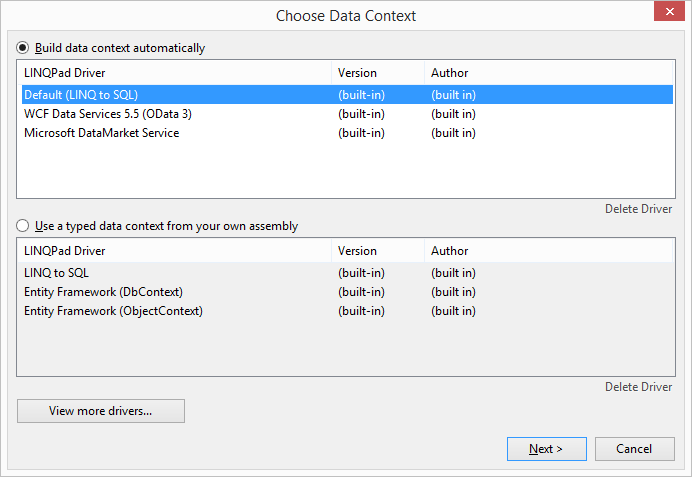

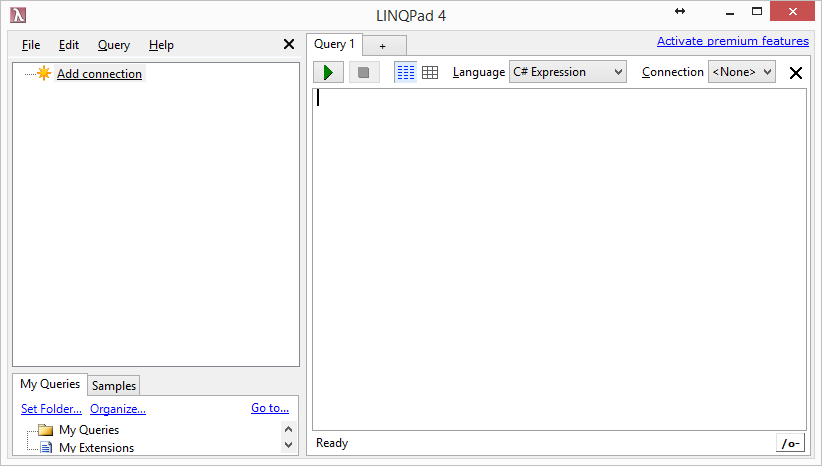

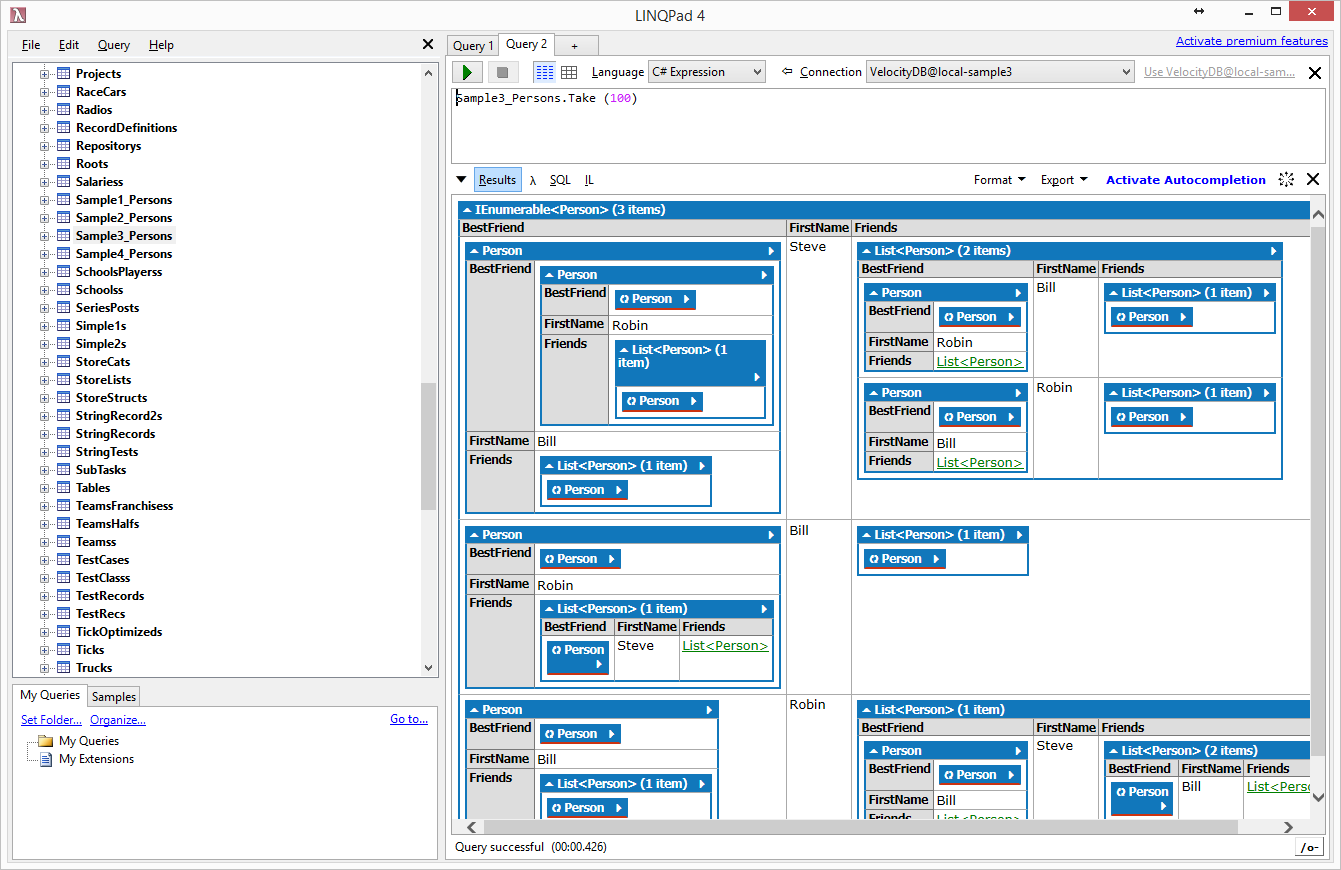

Using LINQPad to make VelocityDB LINQ
queries/browsing. 57
Issues with current LINQPad driver. 66
Controlling the in memory page and
object caching. 66
Verifying all objects and references. 66
Scalability. 67
Database backup and restore. 67
Backup. 67
Restore. 67
CopyAllDatabasesTo. 67
ExportToCSV and ImportFromCsv. 68
VelocityDbServer.exe. 68
Changing the default SessionBase.
BaseDatabasePath in a VelocityDbServer. 69
Option to log all activity in
VelocityDBServer. 69
Changing the tcp/ip port number used
when communication with a VelocityDBServer. 69
Enabling Windows Authentication. 69
VelocityDBCoreServer with http REST
Api 70

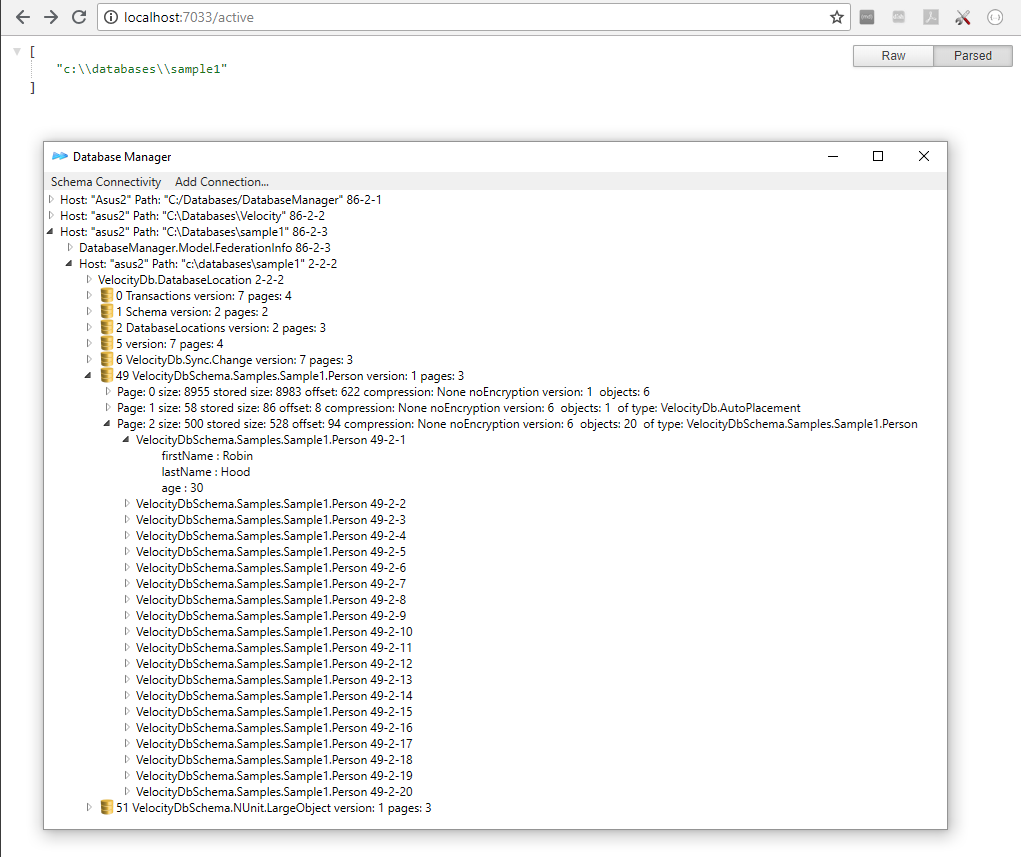

Active connections to
VelocityDBCoreServer. 71

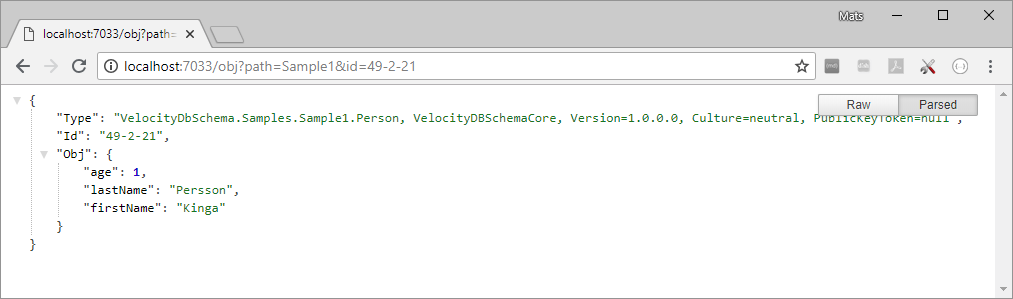

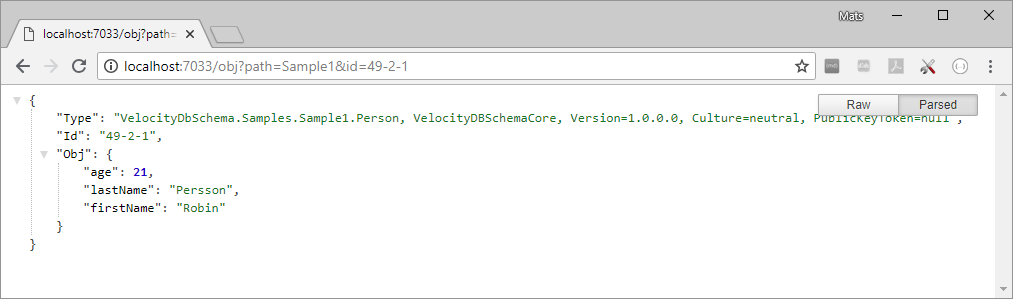

Viewing object 72

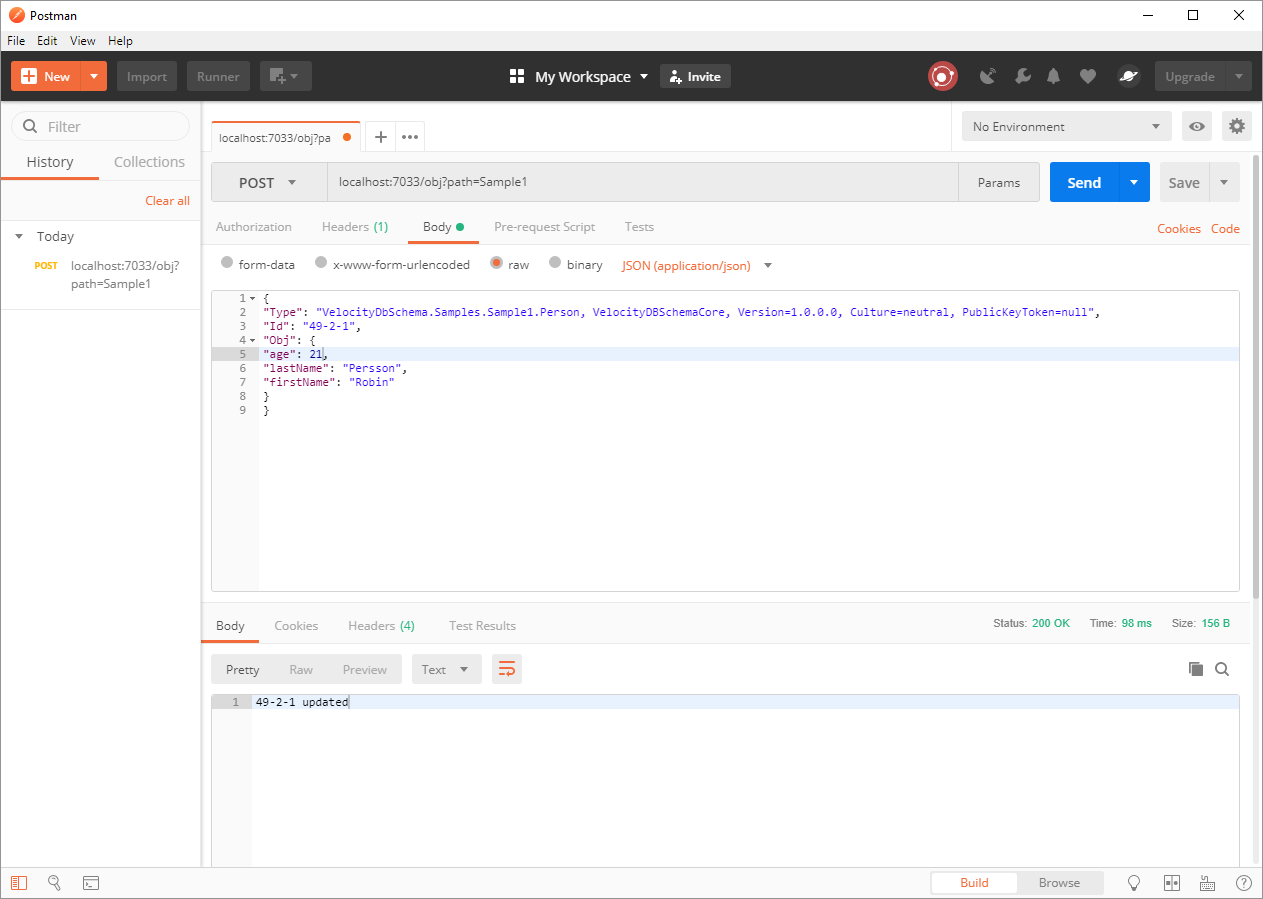

Updating object 72
Adding Object 75

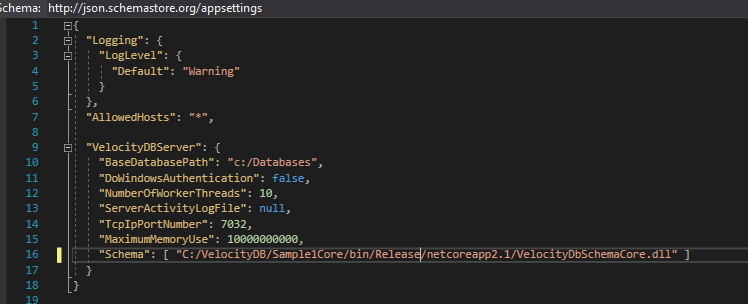

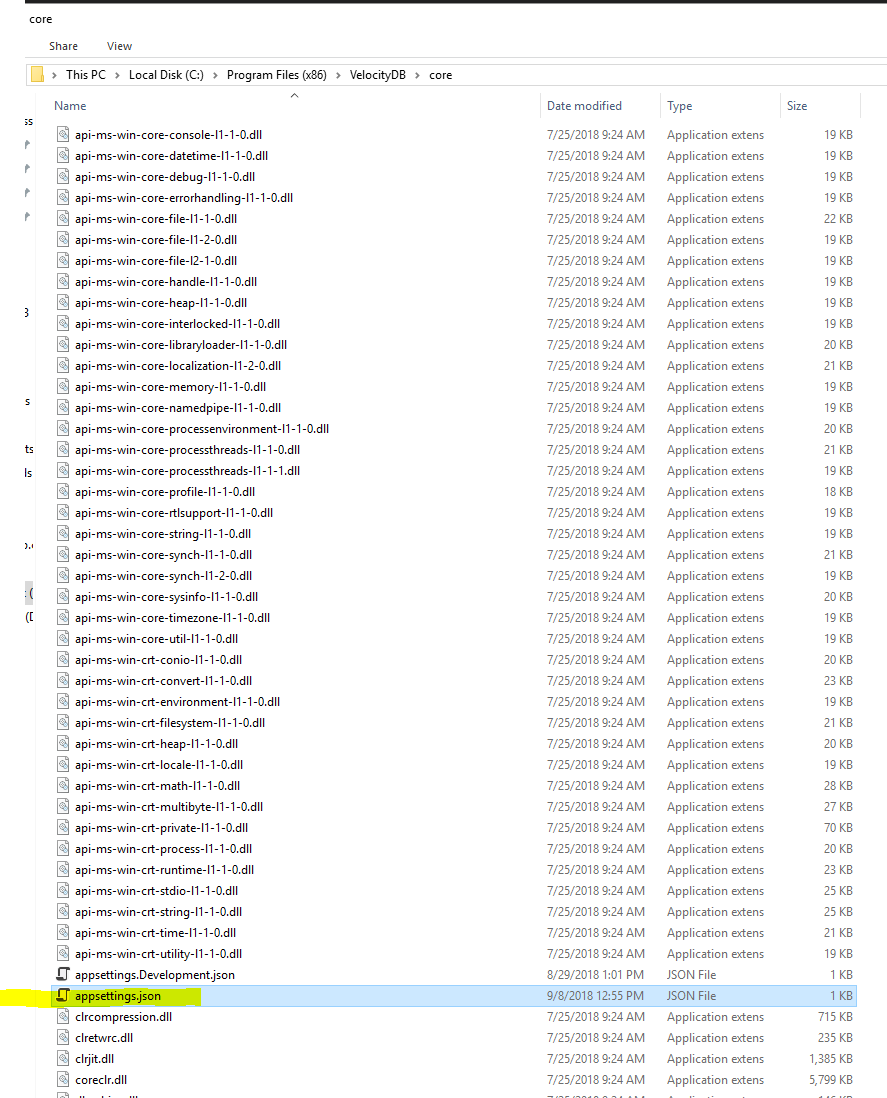

Seetings for the VelocityDBCoreServer. 76

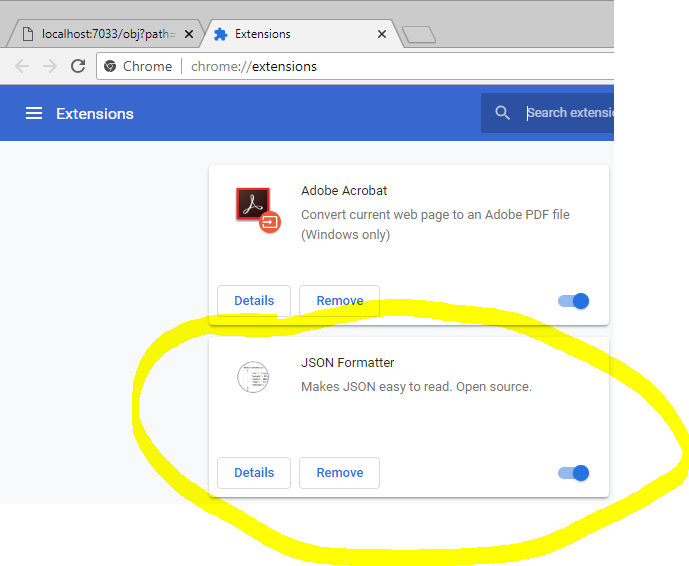

Chrome Json Formatter. 79
Why installation ends up in Program
Files (x86) instead of Program Files?. 79
.NET CORE. 79
.NET 5 and .NET Standard 2.0. 80
Universal Windows. 80
Where to store databases with
Universal Windows?. 80
iOS. 81
Android. 81
Asp.Net Identity. 81
Application Deployment and VelocityDB
license check. 81
Setting Up the sample Web Site
(VelocityWeb) on a hosting web site (in this case GoDaddy) 81
Transfer all the files to your hosting
account 81

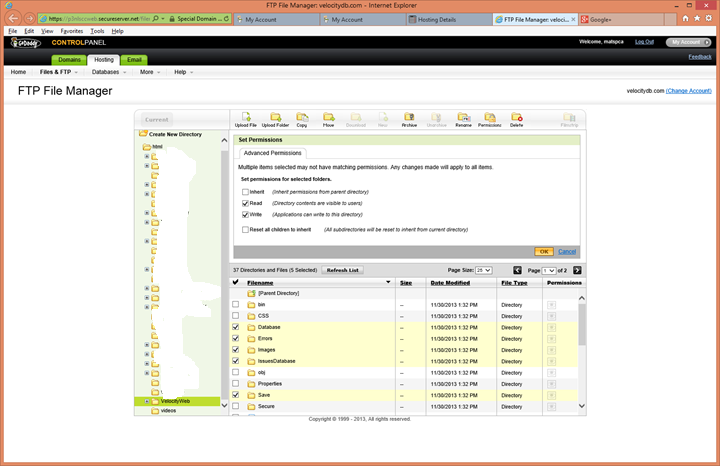

Login to your hosting provider to
enable write access to a few of the directories in the application. 82

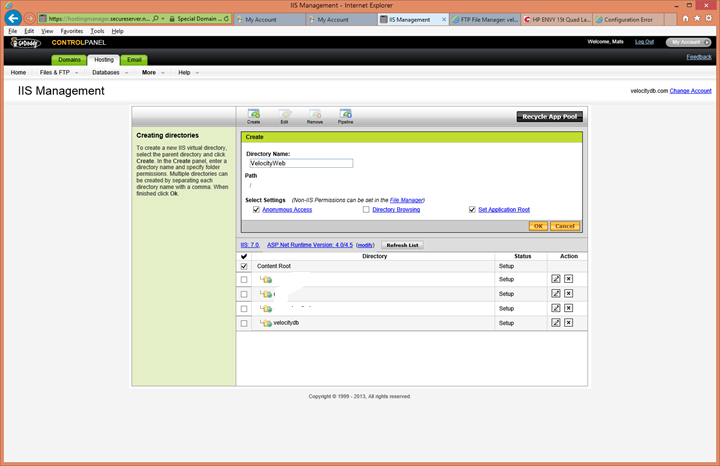

Create an application root virtual
directory for the new web application. 84

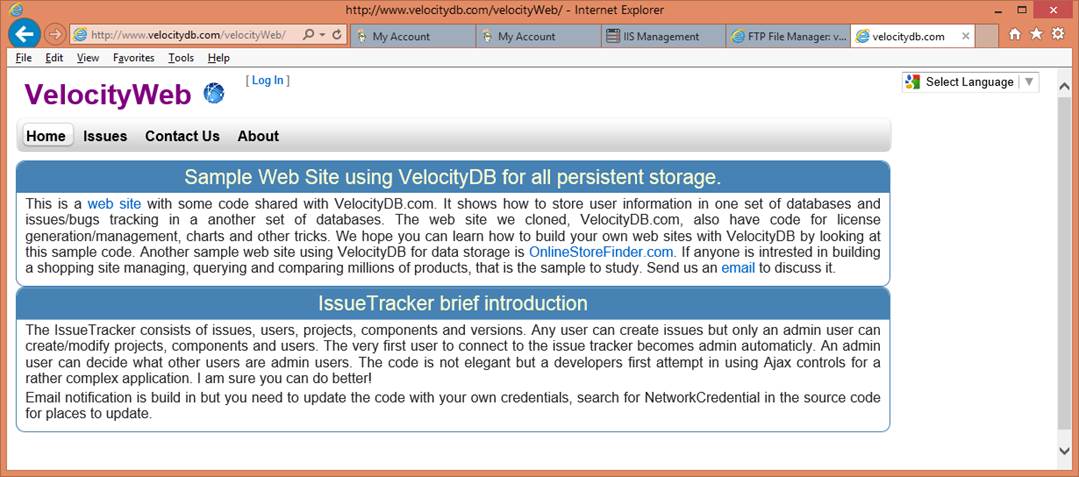

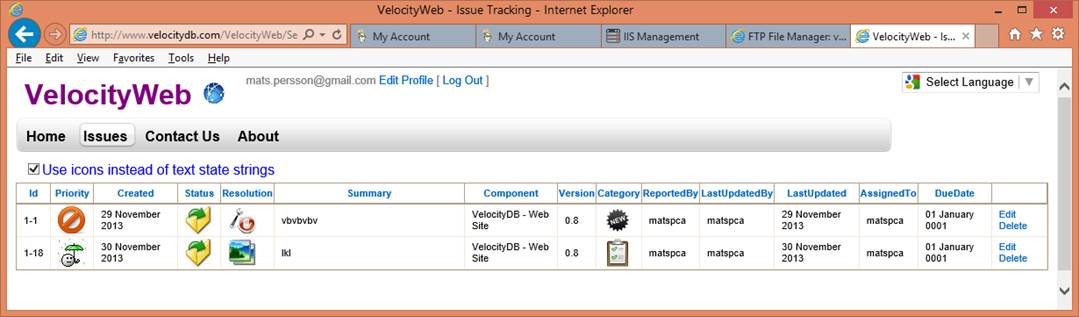

Wait a few minutes then point your
browser at your web application. 85

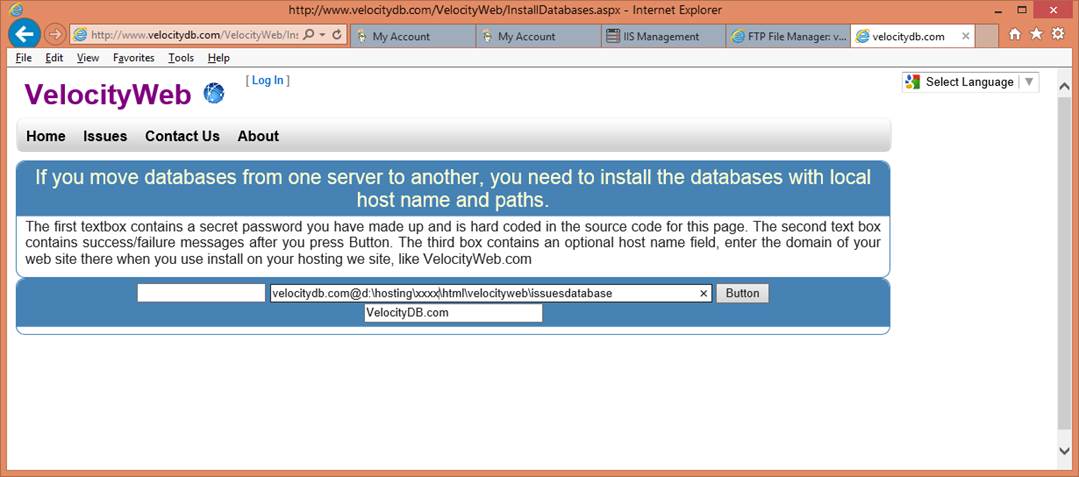

If you transferred your application
directory with databases then install your databases in their new loacftion. 86
If all is well, you are done, access the
application and the databases! 86
If you don’t already have, you need to download and install
software that lets you edit, compile and debug .NET code. Some choices exist
but for Windows development we recommend Visual
Studio Community 2019(free) with all updates applied. The Professional or
Enterprise versions can be even better, but they will cost you.
If you don’t already have, you need to download and install
software that lets you edit, compile and debug .NET code. Some choices exist
but for Mac development we recommend Visual Studio.
Install a Git client, we like: https://www.sourcetreeapp.com/
Go to GitHub.
In a Terminal window do:
Go to directory where you want VelocityDB code, for
instance:
Last login: Thu Sep
13 15:07:20 on ttys006
Matss-Mac-mini:~
matspersson$ git clone https://github.com/VelocityDB/VelocityDB
Cloning into
'VelocityDB'...
remote: Counting
objects: 15105, done.
remote: Compressing
objects: 100% (276/276), done.
remote: Total 15105
(delta 418), reused 510 (delta 359), pack-reused 14462
Receiving objects:
100% (15105/15105), 4.95 MiB | 8.59 MiB/s, done.
Resolving deltas:
100% (13004/13004), done.
Matss-Mac-mini:~
matspersson$

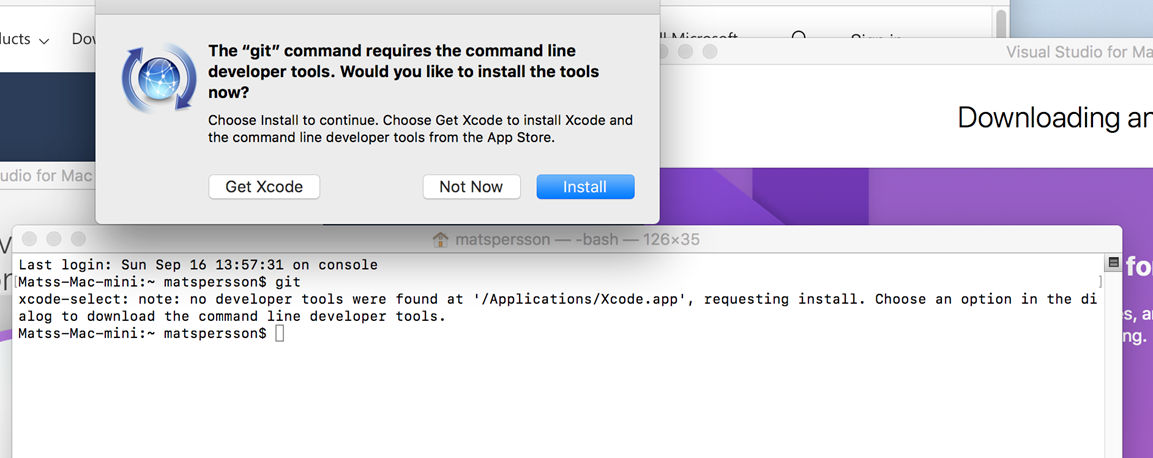

If git isn’t already installed, you get
In such a case,
choose to Install it, then try this again in a fresh terminal window.

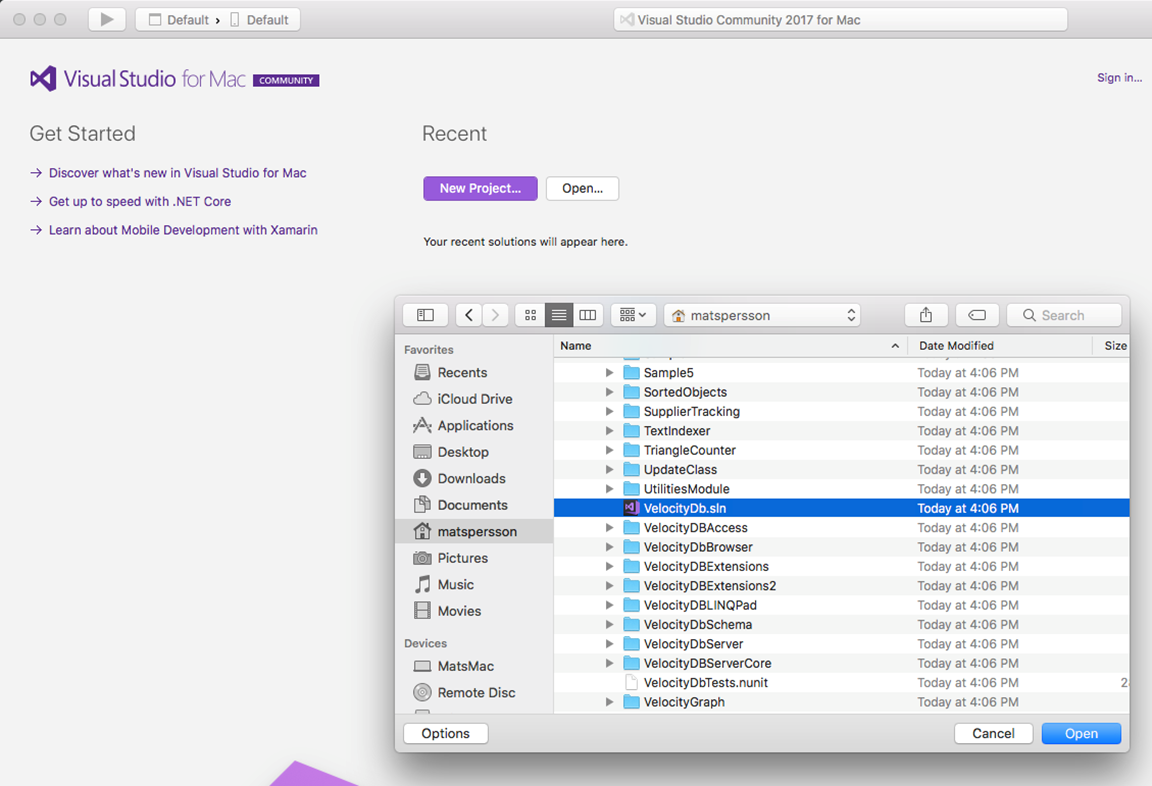

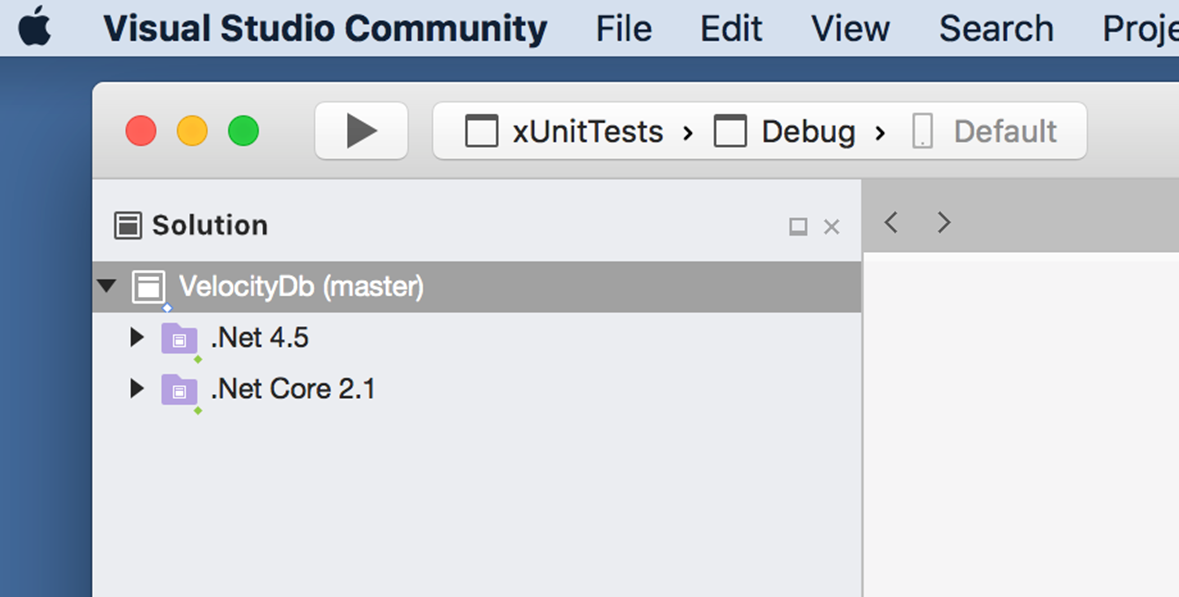

This is solution is shared with Windows. For Mac you can
only run the projects in the .Net Core 3.1 folder.

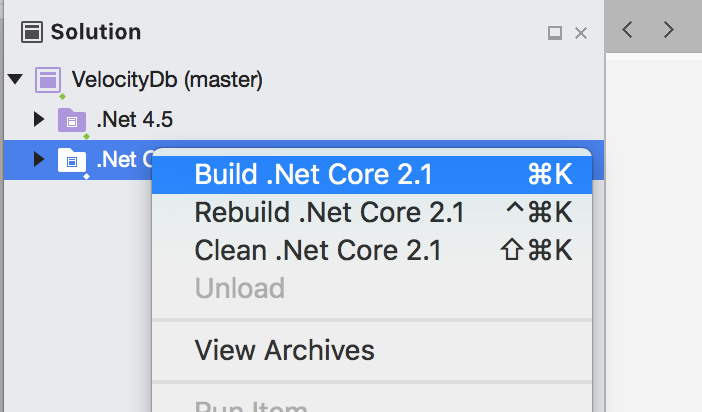

Select that folder and right click (image needs to be
updated to .NET Core 3.1)
Build projects in this folder.
Currently, you will probably see one build error. We are
still trying to figure out how to fix that one.
By default, databases will be stored in a sub folder to
/Databases so create this folder before running any sample project.
Some of these samples and Database Manager are WPF
applications and these can currently not run with .NET Core. They will run with
Windows and .NET Core 3 but not on a Mac.
Open %USERPROFILE%\My Documents\VelocityDB\VelocityDB.sln

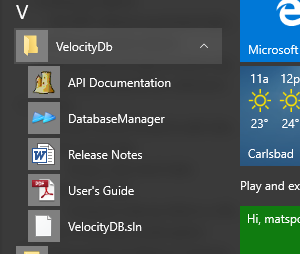

You can also start it by using the shortcut in the programs
start menu.

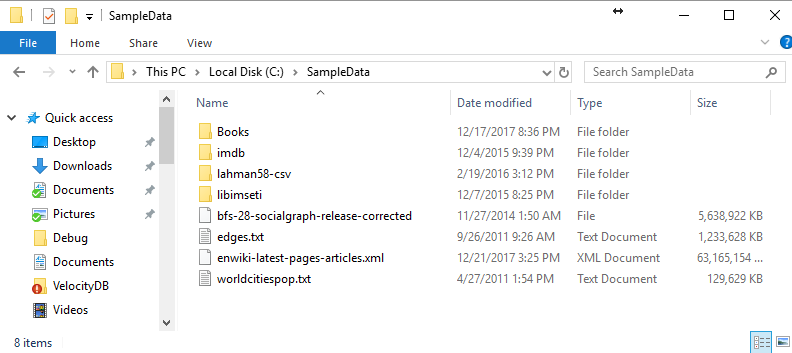

Many of the sample projects use data files. We expect these
files to be in folder c:\SampleData
Download a zip file with this SampleData folder here.
If your C drive isn’t the best location for these large
files then create the sample folder on another drive and create a link from
C:\SampleData to this location using the mklink command.
Open a Cmd window and type
[C:\]mklink /D SampleData F:\SampleData
Symbolic link created for SampleData <<===>>
F:\SampleData
You may also want to do the same for C:\Databases
This is the recommended way to add a reference to our DLLs.

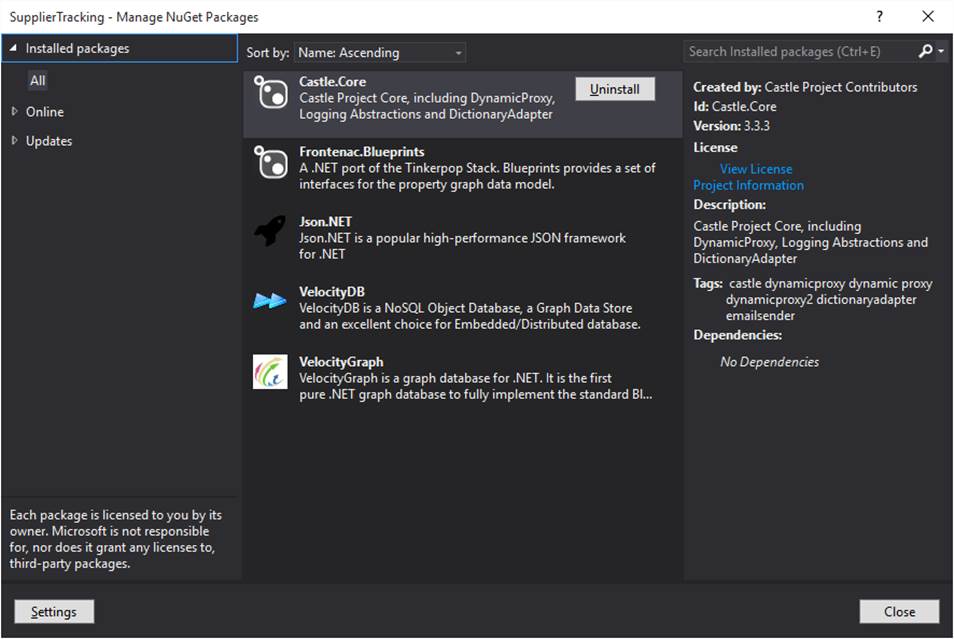

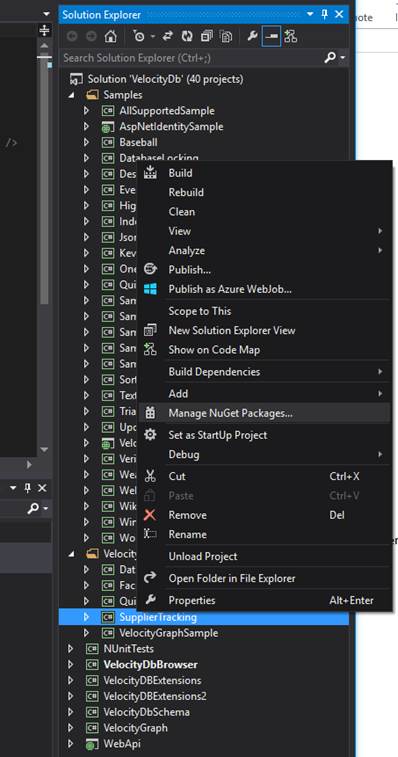

Right click on a project, like SupplierTracking, and select “Manage NuGet
Packages…”

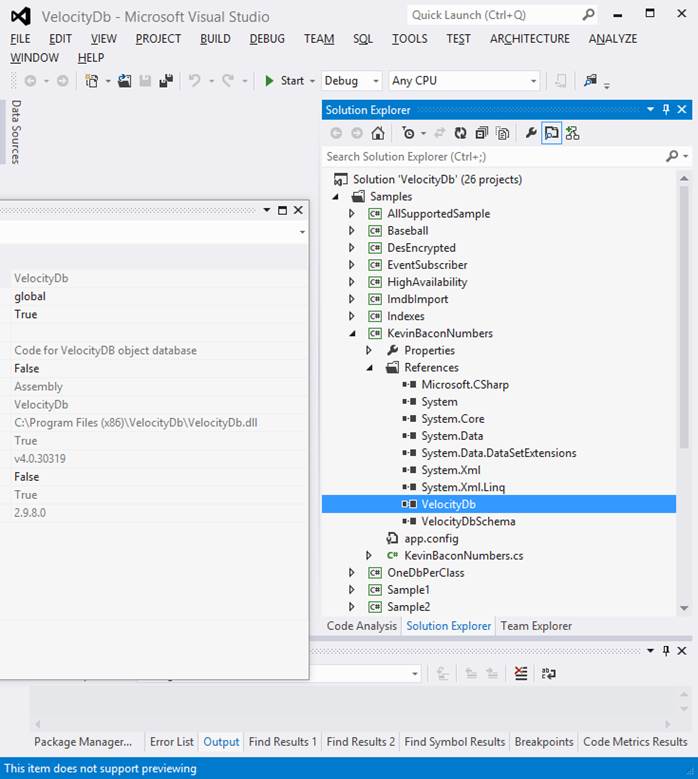

All sample projects should have a reference to
VelocityDB.dll. The path used to VelocityDB.dll is C:\Program Files
(x86)\VelocityDb\VelocityDB.dll, if you windows directory isn’t C: or
the reference is broken then you need to remove each project reference to
VelocityDB.dll and add a new one using the path to it in your installation.
A few of the samples including VelocityGraph project uses 3rd
party NuGet libraries. These libraries are not part of the installation but
will be downloaded automatically when you attempt to build such a project. To

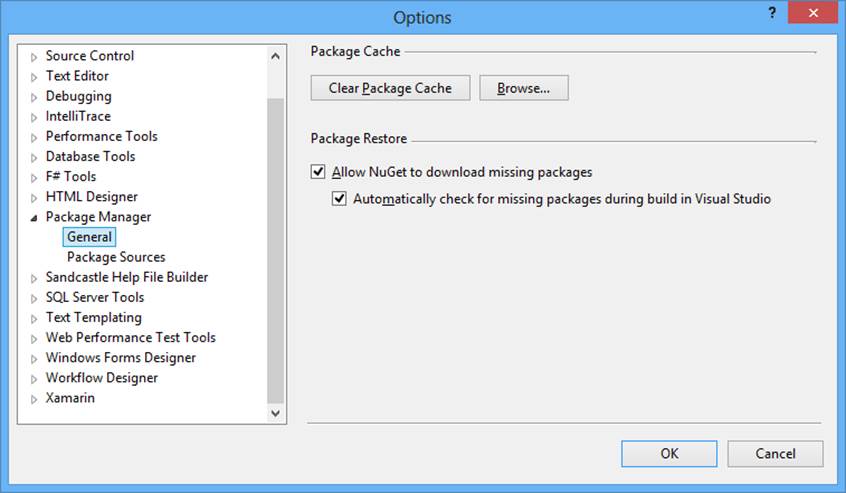

make this happen you need to allow NuGet to download missing packages. If it
still does not download (firewall blocking?) then you may need to manually
install the missing NuGets.
VelocityDB now supports this type of distributed
transactions. A transaction can now be shared between SQL Server and VelocityDB
(and other resources/database systems). To make this work, any client using

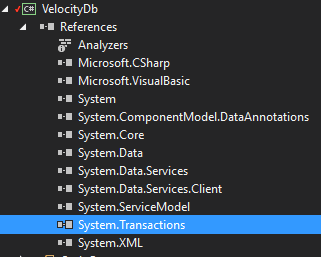

VelocityDB sessions must add a reference to System.Transactions
(except for NET.CORE and UniversalWindows which do not support
System.Transactions).
Sample code using this type of distributed transaction is
included in NUnit Tests. Here is part of it.
[Test]
public void GermanString()
{
UInt64 id = 0;
using (SessionNoServer session = new SessionNoServer(s_systemDir))
{
using (var trans = new TransactionScope())
{
session.BeginUpdate();
VelocityDbSchema.Person person = new VelocityDbSchema.Person();
person.LastName
= "Med
vänliga hälsningar";
id =
session.Persist(person);
trans.Complete();
}
}
If you prefer not to use our installer and instead want to
build our extensions, drivers, server and samples from the source code as in
our GitHub repository
then you need to manually first install
1. Microsoft
Sync Framework (used by our extensions project VelocityDBExtensions2)
2. LinqPad5 (used by our LinqPad
driver)
Clone the repository: https://github.com/VelocityDB/VelocityDB.git
The most important class for users of VelocityDB is the Session
class which contains the Transaction Control API, the Persistence API,
the Data Cache API and more. VelocityDB provides three session types
and does not limit usage. Your application can utilize all of them as
necessary:
·
ServerClientSession
- Used for distributed databases or when clients are hosted remotely.
// initial DatabaseLocation directory and hostname
using (ServerClientSession
session = new ServerClientSession("c:\\Databases", "DbServer"))
{
session.BeginRead();
//
your code here
session.Commit();
}
·
SessionNoServer - Client and data are on the same host
(unless it is a web application)
using (SessionNoServer
session = new SessionNoServer("c:\\Databases"))
{
session.BeginRead();
//
your code here
session.Commit();
}
SessionNoServerShared - Client and data are on
the same host (unless it is a web application) with use of pages and databases
thread safe (other objects only partially) and by default VelocityDB adds some
threading. One thread handles all index updates and another thread handles
object encoding and page writes. You can optionally turn of the page write
thread by a property setting in the session.
session.WriteToDiskInSeperateDatabaseThreads = false;, the index
update thread can also be disabled (but must be enabled if page write threads
are) by setting session.AddToIndexInSeperateThread = false;
Having these worker threads active can dramatically improve update
performance BUT at this time it may not due to the overhead of the Monitor
locks. However, more could be parallelized, but it requires complicated object
level thread locks. Eventually, we will probably merge in the worker thread
functionality into SessionNoServer and eliminate SessionNoServerShared.
using (SessionNoServerShared
session = new SessionNoServerShared
("c:\\Databases"))
{
session.BeginRead();
//
your code here
session.Commit();
}
The session class ServerClientSession
is appropriate if the application will distribute data and/or clients across
multiple hosts (where the clients are not just clients of a web site).
Otherwise, SessionNoServer or SessionNoServerShared are
appropriate. Of the two, the best choice is dependent upon the architecture of
the application.
Additional benefits
of using ServerClientSession
ü
Granularity of locking is page instead of database (file).
ü
Backup feature option
ü
Shared cache for all users (on server side)
ü
Deadlock
detection (when pessimistic locking is used, with optimistic locking deadlocks
don’t happen)
ü
Change event subscription and notification
Benefits of using SessionNoServer
or SessionNoServerShared
ü
No server installation required
ü
More stable, less can go wrong
ü
Can perform better with local files.
Our
video talking about database concurrency control may help you decide what
session to use.
Use SessionNoServerShared when the application must
share a client-side cache between multiple threads. This may be the case for a
web site that has limited RAM resources while also having a large amount of
persistent data to manage.
It is recommended that a session is reused for multiple
transactions since that will provide some caching benefits and also avoids some
setup time, especially with ServerClientSession.
DO NOT pass objects between session instances. Once
you read an object from a database, that object belongs to the session used to
read it. Do not attempt to read an object using one session and the update it
using another session. This will not work as expected and we may not detect it
so it will fail silently.
By default, starting in VelocityDB 4.6, each database will have a worker thread
responsible for taking updated objects and writing these to disk. This is
currently only available when using SessionNoServerShared session class. An
application can turn this threading off by setting the session property session.WriteToDiskInSeperateDatabaseThreads
= false;.
For now, we recommend using SessionNoServer over SessionNoServerShared
due a few remaining issues in SessionNoServerShared that may end up as
exceptions being thrown.
SessionNoServer and ServerClientSession are not thread safe
so don’t use these with multi-threaded code. Be careful not to declare database
access code async as it introduces possible multi-threading. SessionNoServerShared
is thread safe but only at object, page and database access level. Complex
objects such as BTreeSet may still not be fully thread safe with update
transactions. We recommend using a single SessionNoServerShared for all read
only access and a SessionPool session for update transactions. See Issues.aspx.cs
as an example of how to use it.
By default VelocityDB uses optimistic locking. Pessimistic
locking can be turned on by a session constructor parameter. With optimistic
locking, reads are always possible except for uncommitted new databases and
multiple updaters are allowed but only the first writer will succeed, the other
writers of the same page (ServerClientSession) or database (SessionNoServer)
will get an optimistic locking exception. Once you decide using
optimistic/pessimistic concurrency control, stick with your choice. Do not
mix sessions using optimistic concurrency control with sessions using
pessimistic concurrency control. If your application often try to update the
same database/page concurrently, you are better off using pessimistic
locking as it will wait for a lock to be released and then proceed to do the
updates successfully in each concurrent transaction unless a deadlock is detected.
Use this class when you have frequent database requests
coming in from multiple clients possibly simultaneously, i.e. a web application
serving multiple clients. With SessionPool, you will reuse a set of
sessions. With reuse comes a cache of databases, pages and objects. Having the
cached data makes access to data faster compared to starting with a brand new
fresh session each time. Keep the number of sessions allocated for the pool
small to reduce memory usage, we think 3 sessions should be enough in most
cases. If more than the set maximum sessions are requested from SessionPool
then a temporary new session will created and then disposed after usage so that
memory usage is reduced. It is important that your code frees the session back
into the pool after each usage.
const int numberOfSessions = 5;
SessionPool pool = new SessionPool(numberOfSessions,
() => new SessionNoServer(systemDir));
int sessionId = -1;
SessionBase session = null;
try
{
session = pool.GetSession(out
sessionId);
session.BeginUpdate();
for (int i = 0; i < 1000; i++)
{
Man man = new Man();
session.Persist(man);
}
session.Commit();
}
catch (Exception e)
{
if (session != null)
session.Abort();
Console.WriteLine(e.Message);
throw e;
}
finally
{
pool.FreeSession(sessionId, session);
}
All normal VelocityDB persistent objects have an associated
composite object identifier. It is encoded as a UInt64 with
three composite parts; a database number (upper 32 bits), a page number and a
slot number. The Id property returns an objects encoded object identifier
and the Oid
property returns the decoded object identifier as the struct Oid.
A reference to a persistent object is persistently stored as an object
identifier, it is normally a UInt64 but it can also be using a short
object identifier, a UInt32, when the reference is to another object
within the same database. The decoded short reference as a struct is
OidShort.
Use the special OidShort collection classes and tag object references
with the attribute [UseOidShort] as in:
[Serializable]
[UseOidShort]
internal class Recovery : OptimizedPersistable
and for a specific member:
[UseOidShort]
public VelocityDbListOidShort<FreeSpace>
theArray;

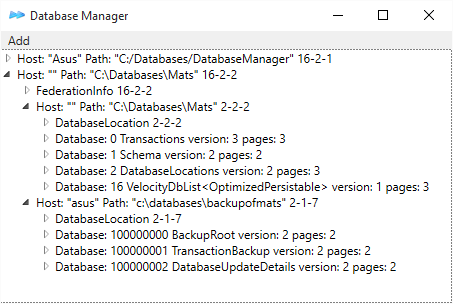

This is a directory on some host. The initial DatabaseLocation
is created when you create your first persistent object. You specify the
directory when you create the session class. You can create additional database
locations like:
using (ServerClientSession
session = new ServerClientSession(systemDir,
Dns.GetHostName()))
{
session.BeginUpdate();
DatabaseLocation otherLocation = new DatabaseLocation(Dns.GetHostName(), location2Dir,
locationStartDbNum, locationEndDbNum, session, true,
0);
otherLocation =
session.NewLocation(otherLocation);
session.Commit();
}
You need to commit the initial DatabaseLocation before other sessions (clients)
can access it.
If you only have a single directory for your set of
connected databases, you may wonder why we need to update anything. The reason
is that some usage scenarios may use one hundred or more database locations in
a single set of databases. That is why we maintain a catalog of database
locations in 2.odb.
First move your database files to desired host and directory, then do
like:
using (var session = new SessionNoServer("CompanyBootLocation"))
{ // NO
longer required starting in version 10.1, we do this automatically when we
detect a new default/bootup location in an update transaction
session.RelocateDefaultDatabaseLocation();
// update
default database location without first starting a transaction
}
// other
locations you will have to update yourself
using (var session = new SessionNoServer("CompanyBootLocation"))
{
session.BeginUpdate();
session.RelocateDatabaseLocationFor(session.DatabaseNumberOf(typeof(InsuranceCompany)), SessionBase.LocalHost, "InsuranceCompanies");
session.Commit();
}
Page compression is now by default turned off. You can turn
it on by setting the constructor parameter when you create a DatabaseLocation.
The initial/default DatabaseLocation is created when you run your first
update transaction with a specified directory that does not already contain
databases 0, 1, and 2 (0.odb, 1.odb, and 2.odb).
If you want page compression turned on for this DatabaseLocation, set SessionBase.DefaultCompressPages
to true first. This static variable is also used when you create your own
DatabaseLocation and not specifying the compressPages constructor parameter.
By default page data is not encrypted. You can enable Des
encryption when you create a DatabaseLocation. Our sample application DesEncrypted shows how to

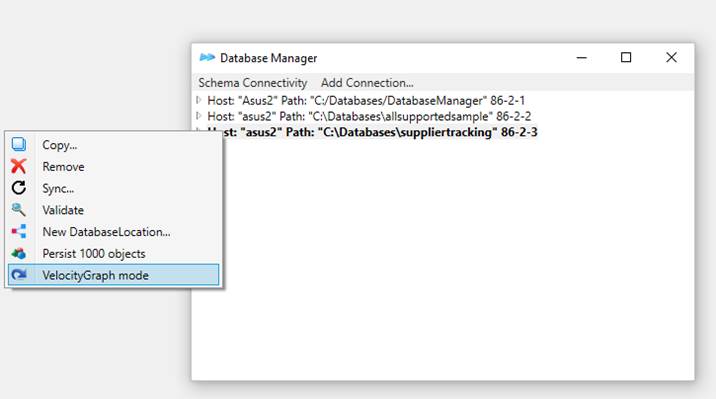

do it. You can also use DatabaseManager to

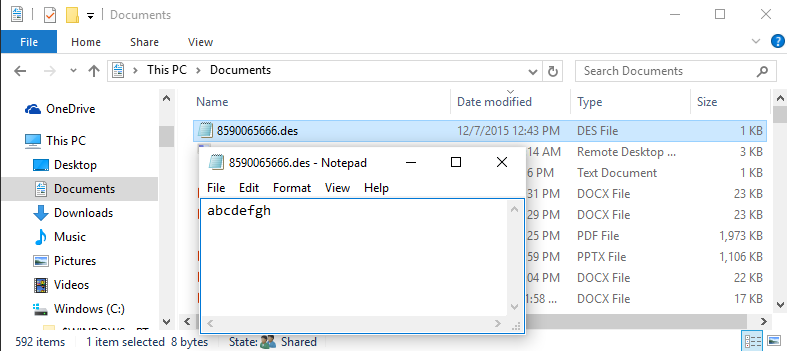

make it happen. Des encryption requires an 8 character (8 bytes) key. Once you
start using Des encryption, this key is stored in a file within the active
Users Documents folder. Filename is based on Id of the DatabaseLocation.
This file needs to be copied to all Users Documents folder
for access to such encrypted pages. DO NOT change the key after you have
persisted pages with Des encryption.
We can provide other encryption mechanisms on request and we
can also rework API such that custom encryption methods can be used.

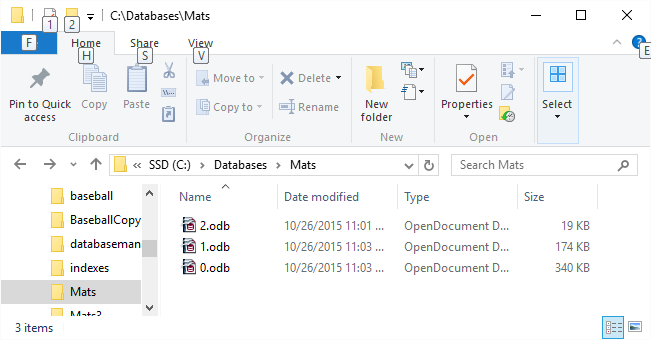

A database corresponds to a file within a DatabaseLocation.
The file name of a Database is <database number>.odb. When
you create your first persistent data, three system databases are created:
·
0.odb
Contains a log of update transactions and the recovery mechanism data.
·
1.odb
Contains the schema objects
·
2.odb
Contains the DatabaseLocation objects.
These system databases must be committed by a session before
other sessions can use them. This is true for any new database; a database must
be committed before other sessions can access it.
A new uncommitted Database is named <database
number>.new
and an uncommitted deleted Database is named <database
number>.del.
A Database can be created explicitly using session
API or implicitly by placing a new persistent object with database part of the
object identifier corresponding to an unallocated database number.
Database pages uses versioning so that a page can be updated
in one transaction and prior committed state of that page can be read by other
transactions. After updating pages there may be available space within a
Database file. This is because when a Database page is updated, it is not
written back to the same location in the file, a new version of the page is
created somewhere else in the file. A new version of a page may be
smaller/larger than the prior version. Space for a new page version is allocated
from a best fit free area. If no free area large enough is available, then the
database file is extended and the page is allocated at the end of the file. This
versioning can create up to two versions of each page in a database. By calling
SessionBase.Compact() this extra database space is reclaimed and pages are
physically ordered in page number order. This may improve performance.
ServerClientSession currently does not implement Compact() so for now use
SessionNoServer when calling Compact(). Call Compact()
outside the scope of any transaction.
Notice! Backup your database
files before attempting a Compact() as it is a potentially very large update to
your database structures. Avoid attempting to make other updates to the
databases while running Compact().
Download your VelocityDB license database file from http://www.velocitydb.com/Secure/License.aspx
The license database file is named 4.odb. Copy this
file to all database directories used for the system databases 1.odb … 9.odb.
This is the directory you specify when creating the session instance. Some of
the sample applications provided with the download will fail without a license
database. If a license database is missing when a license check is happening,
VelocityDB will copy a license database from your “Downloads” directory if such
a file exists and use it for the license check. A license check does not
require an active internet connection. VelocityDB never tries to talk to any
other host as part of the license check.
Databases in the initial DatabaseLocation that starts with
database id 0 can be replicated to multiple directories on multiple hosts. This
enables high availability, if one replica isn’t available then another
available one is used if available. Under normal operation, all changes are applied
to all replicas. If a replica is found to be out of sync, it is refreshed from
one of the replicas that is up to date. Using replication is optional and is
activated by using a special version of the ServerClientSession constructor as
in:
alternateSystemBoot
= new
List<ReplicaInfo> { new ReplicaInfo { Path = "Replica1" }, new ReplicaInfo { Path = "Replica2" }, new ReplicaInfo { Path = "Replica3", Host = s_systemHost2
} };
using (var session = new
ServerClientSession(alternateSystemBoot))
Replicas can be added/removed by changing the
List<ReplicaInfo> constructor parameter.
As of February 2019, this is a new feature with some
limitations, we will incrementally update the replication code with automatic
fault tolerance until it’s perfected, handling all cases and is rock solid.
Please help us with ideas and test cases for how to get there.
It is very easy to store databases in the cloud with
replication, backup and safe access using Microsoft Azure File storage.
Microsoft provide free trials of Azure. To store databases on Azure servers,
all you need to do is to use a file share.
See description here.
Once you have mounted your Azure directory as a local drive
such as z:, you can start using it for reading and updating Azure hosted
storage. We also started work on an AzureSession class based on SessionNoServer
as a direct way to access Azure hosted databases. The code for this is in our
download as part of VelocityDbExtensions project file name AzureSession.cs. It
currently isn’t fully working due to challenges with Azure Stream that only
can be read only or update only, required explicit Flush() and file resizing.
In any case the shared drive solution is more transparent and have less
restriction so use it for now.
Example: net use z:
\\samples.file.core.windows.net\logs /u:samples<storage-account-key>
Microsoft now supports a micro service technology they named
“ServiceFabric”.
It is a very cool option that lets you deploy services on your local computer,
an own server or in the cloud using Microsoft Azure. It lets you communicate in
many ways between client and server but the coolest/easiest way is by using ServiceFabric
Remoting. All you do is define and interface and then you implement the
interface in the service fabric service. Clients just instantiate the interface
by a proxy (one line statement) and then the service becomes available as if it
was API within the client process. Very nice! On the server (service) side you
do not need to use the VelocityDBServer, you can use the embedded client
sessions instead (SessionNoServer and/or SessionNoServerShared).
If remote server is within a Windows network, UNC path
to databases can be used. Easiest way to do it is by setting SessionBase.BaseDatabasePath,
i.e.
static readonly string s_systemDir = "UncPath"; // appended to
SessionBase.BaseDatabasePath
static int Main(string[] args)
{
SessionBase.BaseDatabasePath = @"\\FindPriceBuy\BenchmarkDatabases";
for (int i = 0; i < 5; i++)
using (var session = new
SessionNoServer(s_systemDir))
{
Console.WriteLine($"Running with databases in directory: {session.SystemDirectory}");
A VelocityDB page can contains one or more persistent
objects. The size of a Page can vary dynamically. A page is
stored within a Database file. Each Page has a PageInfo
header that contains information about a page. A Page can optionally be
encrypted and/or compressed.
All interaction with databases and persistent object require
an active transaction. With VelocityDB we provide two kinds of transactions;
update and read only. With an update transaction, you are permitted to update
and add persistent data. With a read only transaction, an exception will be
thrown by VelocityDB if you try to update persistent data. Only one concurrent
transaction per session is permitted. A transaction is started and committed by
API on the session classes.
An application may examine in memory persistent object without being in a
transaction but an exception will be thrown if any persistent operation is
requested like reading a page from a database.
public virtual
void BeginRead(bool
doRecoveryCheck = true)
public virtual
void BeginUpdate()
public virtual
void Commit(bool
doRecoveryCheck = true)
public virtual
void Abort()
It is particularly important to add this around update
transactions. If you don’t add it around an update transaction then you could
end up corrupting your data. You should always abort the active transaction if
you get an exception.
static int Main(string[]
args)
{
using (SessionNoServer
session = new SessionNoServer(systemDir))
{
Console.WriteLine("Running with
databases in directory: " + session.SystemDirectory);
try
{
session.BeginUpdate();
Company company = new Company();
company.Name = "MyCompany";
session.Persist(company);
Employee employee1 = new Employee();
employee1.Employer = company;
employee1.FirstName = "John";
employee1.LastName = "Walter";
session.Persist(employee1);
session.Commit();
}
catch (Exception ex)
{
Trace.WriteLine(ex.Message);
session.Abort();
}
}
Retrieve();
return 0;
}
With optimistic locking option (the default) there is no
locking reason for a transaction when only reading objects. If the other
locking model is used, pessimistic locking, then read only transactions are
needed because they define the scope of read locks. A session constructor
parameter is used for requesting optimistic or pessimistic locking model. Another
reason we need read only transaction is cache management and validation. Each
Database, Page and Object is cached within a session instance. Each cached
Database is validated in the beginning of a transaction, making sure cached
version is up to date. If reads are frequent among multiple threads, it may
make sense to use a shared session for the reads, SessionNoServerShared,
and maintain an infinitely long open optimistic locking read transaction. Call
ForceDatabaseCacheValidation()frequently
when there is possible other active database clients so that your cache stays
up to date. Alternatively trigger validation of only selected databases by
setting the Database property CachedVerified to false.
By default when a BeginRead() transaction is started, we
do not check for the very unlikely event that our previous update transaction
was not completely persisted so that we need to revert to prior state. By
skipping this check in read transactions we save time. To enable the check start
transaction with BeginRead(true) instead.
With use of ServerClientSession you can subscribe to object
add/modification events. The EventSubscriber
sample, part of your VelocityDb.sln, in our download shows how it can be used.
A session can subscribe to changes made in other
ServerClientSession sessions in any process on any host.
An event subscription is started like
session.SubscribeToChanges(typeof(Person));
subscribes to any updates
involving Person objects.
session.SubscribeToChanges(typeof(Woman), "OlderThan50");
subscribes to any updates
involving Woman objects where property OlderThan50 evaluates to true.
Events are received at the start of a transaction by using
special begin transaction API
List<Oid>
changes = session.BeginReadWithEvents();
or
List<Oid>
changes = session.BeginUpdateWithEvents();
There are three major choices for enabling persistence.
1. Make
your data model class a subclass of OptimizedPersistable
2.
Implement the interface IOptimizedPersistable. See the sample class PersistenceByInterfaceSnake
as a template for how to implement the required interface API.
3. Implement
the interface ISerializable
These three ways of enabling persistence can be mixed, some
classes may implement the interface and others may be subclasses of OptimizedPersistable.
Objects of ValueType and arrays are embedded within a
parent persistent object.
In addition, almost any type of object, except Delegate and
Pointer instances, can be made persistent but this way is not very efficient
due to requiring use of a fairly inefficient ConditionalWeakTable
internally by VelocityDB due to such objects not maintaining an object
identifier as a field.
OptimizedPersistable implements IOptimizedPersistable.
This way is NOT recommended as it slows down serialization
and deserialization. This is also true for ISerializable
classes that you may use from some library. Be prepared, it will be slow.
HashSet is about 60x slower to deserialize vs List/BTreeSet due to it being ISerializable.
In some cases regular serialization/deserialization is not
desired. Good examples of that are the date classes in NodaTime. These object de-serialize to use a
shared CalendarSystem
instance. (Very clever!)
If your class implements both ISerializable and IDeserializationCallback
then VelocityDB will call your callback function OnDeserialization.
Sample simple use of ISerializable (part of NUnit tests
included with our product download & on GitHub)
public class TestISerializable : ISerializable
{
public int m_intOne;
public string m_stringOne;
public string m_notSerialized;
public TestISerializable()
{
m_stringOne = "one";
m_intOne = 1;
m_notSerialized = "not";
}
private TestISerializable(SerializationInfo info, StreamingContext context)
{
m_intOne = info.GetInt32("m_intOne");
m_stringOne = info.GetString("m_stringOne");
m_notSerialized
= "transient";
}
void ISerializable.GetObjectData(SerializationInfo info, StreamingContext context)
{
info.AddValue("m_intOne", m_intOne);
info.AddValue("m_stringOne",
m_stringOne);
}
}
Note that OptimizedPersistable overrides
Equals and GetHashCode
public override bool
Equals(Object obj)
{
OptimizedPersistable otherPersistentObject = obj
as OptimizedPersistable;
if (otherPersistentObject != null)
{
if (otherPersistentObject.IsPersistent &&
IsPersistent)
return
m_id.Equals(otherPersistentObject.m_id);
return base.Equals(obj);
}
else
return false;
}
public override int
GetHashCode()
{
if (m_id == 0)
return base.GetHashCode();
return (int)Oid.DatabaseNumber(Id)
<< 24 + (int)Id;
}
As you can see the behavior
is different when object becomes persistent. If you use these functions for
objects that you want to use persistently then it is VERY important that
such objects are persisted BEFORE being used with Equals and/or
GetHashCode or else you will end up with a corrupt HashSet or whatever way you triggered
use of these methods.
It is good practice to persist all DateTime
structures using Coordinated Universal Time (UTC) DateTimeKind.
If you store DateTime using DateTimeKind.Local, it is your responsibility to
also store/track TimezoneInfo,
it is not stored with DateTime.
Database Schema
VelocityDB maintains a special database, 1.odb, for all
database schema. Objects in this database of type VelocityDbType, TypeVersion
and DataMember
describes the types and fields your application persists. It is important
that once you persist an instance of a class that this class remains within
your application anytime you access your databases. Otherwise, database schema
will not be able to resolve schema class with a .NET type. If you accidently do
this, it is possible to delete such an entry after you make sure there isn’t any
instances of it stored in any database. Contact us for assistance if this is
required. You can also add an empty (stub) class of the missing type so that it
resolves to something at schema load time.
It is not mandatory, but by doing so you ensure that schema
is created one way no matter in what order you persist objects and you avoid
potential lock conflicts with the schema database (1.odb). For VelocityGraph,
we do this the first time a Graph is persisted as:
public override UInt64
Persist(Placement place, SessionBase
session, bool persistRefs = true,
bool disableFlush = false, Queue<IOptimizedPersistable>
toPersist = null)
{
if (IsPersistent)
return Id;
session.RegisterClass(typeof(Graph));
session.RegisterClass(typeof(BTreeMap<EdgeTypeId, EdgeTypeId>));
session.RegisterClass(typeof(PropertyType));
session.RegisterClass(typeof(VertexType));
session.RegisterClass(typeof(VelocityDbList<VertexType>));
session.RegisterClass(typeof(EdgeType));
session.RegisterClass(typeof(UnrestrictedEdge));
session.RegisterClass(typeof(VelocityDbList<Range<ElementId>>));
session.RegisterClass(typeof(VelocityDbList<EdgeType>));
session.RegisterClass(typeof(Range<VertexId>));
session.RegisterClass(typeof(BTreeSet<Range<VertexId>>));
session.RegisterClass(typeof(BTreeSet<EdgeType>));
session.RegisterClass(typeof(BTreeSet<EdgeIdVertexId>));
session.RegisterClass(typeof(BTreeMap<EdgeId, ulong>));
session.RegisterClass(typeof(BTreeMap<EdgeId, UnrestrictedEdge>));
session.RegisterClass(typeof(BTreeMap<string, PropertyType>));
session.RegisterClass(typeof(BTreeMap<string, EdgeType>));
session.RegisterClass(typeof(BTreeMap<string, VertexType>));
session.RegisterClass(typeof(BTreeMap<VertexId, BTreeSet<EdgeIdVertexId>>));
session.RegisterClass(typeof(BTreeMap<VertexType, BTreeMap<VertexId, BTreeSet<EdgeIdVertexId>>>));
session.RegisterClass(typeof(BTreeMap<EdgeType, BTreeMap<VertexType, BTreeMap<VertexId, BTreeSet<EdgeIdVertexId>>>>));
session.RegisterClass(typeof(BTreeMap<string, BTreeSet<ElementId>>));
session.RegisterClass(typeof(BTreeMap<int, BTreeSet<ElementId>>));
session.RegisterClass(typeof(BTreeMap<Int64, BTreeSet<ElementId>>));
session.RegisterClass(typeof(PropertyTypeT<bool>));
session.RegisterClass(typeof(PropertyTypeT<int>));
session.RegisterClass(typeof(PropertyTypeT<long>));
session.RegisterClass(typeof(PropertyTypeT<double>));
session.RegisterClass(typeof(PropertyTypeT<DateTime>));
session.RegisterClass(typeof(PropertyTypeT<string>));
session.RegisterClass(typeof(PropertyTypeT<IComparable>));
session.RegisterClass(typeof(AutoPlacement));
return base.Persist(place, session,
persistRefs, disableFlush, toPersist);
}
The following is from the
test aaa_IndexRegisterClass in project NUnitTests and class is
IndexingTest
public class InsuranceCompany :
OptimizedPersistable
{
[Index]
[UniqueConstraint]
[OnePerDatabase]
string name;
string phoneNumber;
public InsuranceCompany(string name, string phoneNumber)
{
this.name = name;
this.phoneNumber =
phoneNumber;
}
[FieldAccessor("name")]
public string Name
{
get
{
return name;
}
}
}
[UniqueConstraint]
[Index("_registrationState,_registrationPlate")]
public class Car :
Vehicle
{
string _registrationState;
string _registrationPlate;
[Index]
InsuranceCompany _insuranceCompany;
string _insurancePolicy;
public Car(string color, int maxPassengers, int fuelCapacity, double
litresPer100Kilometers, DateTime modelYear,
string brandName, string modelName, int maxSpeed, int odometer, string registrationState, string registrationPlate,
InsuranceCompany insuranceCompany, string insurancePolicy):base(modelYear,color,
maxPassengers, fuelCapacity, litresPer100Kilometers, brandName, modelName,
maxSpeed, odometer)
{
_registrationState = registrationState;
_registrationPlate = registrationPlate;
_insuranceCompany = insuranceCompany;
_insurancePolicy = insurancePolicy;
}
[FieldAccessor("_registrationState")]
public string RegistrationState
=> _registrationState;
[FieldAccessor("_registrationPlate")]
public string RegistrationPlate
=> _registrationPlate;
}
You should register a few
addional index related classes:
session.RegisterClass(typeof(IndexDescriptor));
session.RegisterClass(typeof(BTreeSetOidShort<IndexDescriptor>));
session.RegisterClass(typeof(CompareByField<IndexDescriptor>));
session.RegisterClass(typeof(Indexes));
session.RegisterClass(typeof(VelocityDbList<OptimizedPersistable>));
For
each of your classes that uses indexes (replace with your class name)
session.RegisterClass(typeof(CompareByFieldIndex<InsuranceCompany>));
session.RegisterClass(typeof(BTreeSetOidShort<InsuranceCompany>));//
short due to [OnePerDatabase] on this Index
// normally it would be instead
session.RegisterClass(typeof(VelocityDb.Collection.Comparer.CompareByFieldIndex<Car>));
session.RegisterClass(typeof(BTreeSet<Car>));
// If you
are using Reference
session.RegisterClass(typeof(Reference));
session.RegisterClass(typeof(BTreeSet<Reference>));
If base classes have indexes (like Vehicle in this example),
you need to do it for such classes as well.
Objects of a class that has
only fixed size fields can be stored without specifying an object size. This
saves four bytes per object and such objects can in some cases be looked up by
byte offset. You can make a string field fixed size by using the StringLength
attribute as in
public class TickOptimized : OptimizedPersistable
{
[StringLength(8)]
string m_symbol;
DateTime m_timestamp;
double m_bid;
In this case m_symbol will be stored using
8 bytes. We interpret length as number of bytes, not number of characters.
You can calculate how many bytes a certain
string uses in persisted state with
SessionBase.TextEncoding.GetByteCount(string
str);
After making changes to a
class, in an update transaction call session.UpdateClass(typeof(UpdatedClass)); as done in the sample application UpdateClass. This updates the
schema to reflect the changes to your class, a new version of the class is
created as a new instance of TypeVersion. Objects associated with prior versions of this type
are migrated to the updated class in memory when read from a database. To make
such objects permanently be shaped as the latest version of your class TypeVersion, you need to update the object with a call to UpdateTypeVersion().If
you fail to call UpdateClass, it can lead to
exceptions and failures to read/write objects of the Type
We wanted to make a change to our
BTree/BTreeMap collection to reduce memory usage and improve performance. To do
this while still preserving already persisted data of these types. This is how
we did it.
First change class definitions by
setting prior version usage field as [NonSerialized] and add new version of field as in:
[NonSerialized]
internal VelocityDbList<BTreeLeafBase<Key, Value>> nodeList;
internal WeakReferenceListBase<BTreeLeafBase<Key, Value>>
_nodeList;
When we read an object of this
type as it was before this change, nodeList will be set and _nodeList will be null so to make the switch to new field type add
to this class code like:
public override void InitializeAfterRead(SessionBase session)
{
base.InitializeAfterRead(session);
if (nodeList != null)
{
_nodeList
= new WeakReferenceList<BTreeLeafBase<Key, Value>>(nodeList.Count,
Session);
foreach (var e in nodeList)
_nodeList.Add(e);
if
(session.InUpdateTransaction)
{
session.UpdateClass(GetType());
UpdateTypeVersion();
nodeList.Unpersist(session);
}
}
}
After updating all your persisted objects to the new field
type, you can remove the [NonSerialized]
field and the InitializeAfterRead override.
The UpdateClass sample shows how to do this.
Example usage
session.ReplacePersistedType(typeof(VelocityDbSchema.Samples.UpdateClass.UpdatedClass), typeof(UpdateClass.UpdatedClass));
and back again using alternate API
session.ReplacePersistedType(typeof(UpdateClass.UpdatedClass).AssemblyQualifiedName,
typeof(VelocityDbSchema.Samples.UpdateClass.UpdatedClass));
NOTE: The type you are replacing with must not
already exist in the database schema. Make sure both old type and replacement
type contains the exact same fields.
Some of the content in this guide does not apply to users
that only use VelocityGraph with simple property values such as numbers and
strings. As a strict VelocityGraph user you do not need to worry about calling
Update() before updating an object and schema is static, only what the base VelocityGraph
uses.
Our DatabaseManager now
includes a VelocityGraph mode. Right click to bring up menu. In this
mode you see objects as you work with them in VelocityGraph, the other mode
(default) shows how objects are stored.
You can export a Graph to GraphJson and then use Alchemy.js to visualize
the graph.
I.e. the exported graph of the QuickStart VelocityGraph can
look like

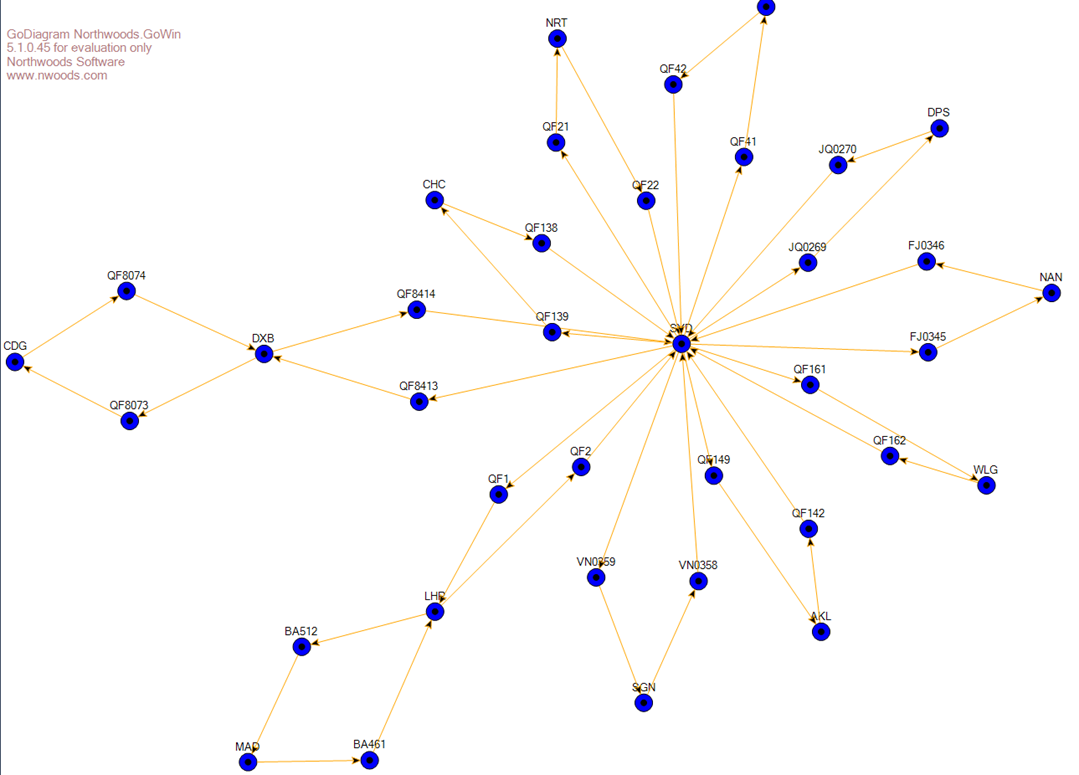

Other alternatives include using Northwoods Software. The following
graph/diagram was created with very simple C# code from a VelocityGraph.
The placement (location) of persistent objects affects
performance and locking. It is therefore important to make decisions about
where to place an object when making it persistent. Once an object has been
persisted, it remains in the same location for its persistent life time. You
can decide how many objects you want on a single page. For slightly improved
storage, require that a page only may contain objects of a specific type. Also
fixed size objects (ones with no contained variable size arrays) can further improve
object store efficiency. Several ways of controlling the placement when
persisting object are provided. First on IOptimizedPersistable
the following helps guide the placement:
UInt16 ObjectsPerPage
{
get;
}
Best way to persist an
object
The recommended way of persisting objects is using the SessionBase api:
public UInt64 Persist(object obj)
When this api is used, each type is stored in its own database. For best
performance avoid explicitly persisting objects unless: an object is a root
object (not referenced by other persisted objects), includes an [AutoIncrement]
field (unless you don’t care what number gets assigned), used in a
VelocityDBWeakReference or is indexed and you can’t wait for the index update
to happen at transaction commit. Objects not persisted explicitly will be made
persistent automatically by reachability from a persisted object.
Add the attribute [NonSerialized]
for each class field you don’t want to be persisted.
It is recommended that you make the following override in your OptimizedPersistable
subclass for better performance:
public override bool
AllowOtherTypesOnSamePage
{
get
{
return false;
}
}
We may make this default but it could break existing code so
it is not a trivial change.
In addition the IOptimizedPersistable interface contains API intended for
customizing how fields of an object being persisted are to be persisted
(including where to place).
UInt64 Persist(Placement
place, SessionBase session, bool persistRefs = false,
bool disableFlush = false);
UInt64 Persist(SessionBase
session, IOptimizedPersistable placeHint, bool persistRefs = false,
bool disableFlush = false);
|
|
for (int i = 0; i < numberOfPersons; i++)
{
person
= new Person();
person.Persist(session, person);
}
|
|
|
for (int i = 0; i < numberOfPersons; i++)
{
person
= new Person();
if (priorPerson == null)
priorPerson = person;
person.Persist(session, priorPerson); // use
prior person as object to persist near
priorPerson = person;
}
|
The second way of
controlling the placement while persisting an object is by using persistent or
transient instances of the Placement class.
public Placement(UInt32 db, UInt16 page = 1, UInt16 slot = 1, UInt16
objectsPerPage = 10000, UInt16 pagesPerDatabase
= 10000, bool persistRefs = false, bool
tryOtherDatabaseIfLockConflict = true, UInt32 maxNumberOfDatabases = UInt32.MaxValue, bool
allowOtherTypesOnSamePage = true, bool flushFullPages = true)
public Placement(SessionBase session, IOptimizedPersistable
placementProviderObject, IOptimizedPersistable
objectToPlace, bool persistRefs = false, UInt32
maxNumberOfDatabases = UInt32.MaxValue, bool flushFullPages = true)
There is also additional API on Placement for fine tuning
the placement. An instance of
Placement is used as parameter to the IOptimizedPersistable
Persist API mentioned above.
Sometimes it an advantage to put all related objects in a single database
because then 32bit, OidShort, object references can be used instead of full
64 bit, Oid,
object references. A short object reference contains only a page and slot part
(16 bit each). Such references use less storage space and if only short
references are used within a database, such a database can easily be cloned
since it’s database number isn’t hard coded anywhere within the database. Short
references are not automatically used when you place objects this way. The
application must explicitly request it in the class definition by using the
attribute [UseOidShort]. There are also special short
references versions of the provided BTree collections. The application needs to
use those instead of the long reference BTree collections when you want all
objects within a database to use short references.
How to optimally place/persist objects is application dependent. The
sample programs provided try to illustrate some of many use cases for object
placement.
Be default when you persist some object using the recommended method, all objects reachable from this
object are also persisted by the same method. You can override this behavior
for persisting reachable objects by overriding the property IOptimizedPersistable.PlacementDatabaseNumber
to return something different than Placement.DefaultPlacementDatabaseNumber.
You can further control the persist of objects by overriding
the Persist function as in:
public override UInt64
Persist(Placement place, SessionBase
session, bool persistRefs = true,
bool disableFlush = false,
Queue<IOptimizedPersistable>
toPersist = null)
{
base.Persist(place,
session, false, disableFlush, toPersist);
keyArray.Persist(place, session, true,
disableFlush, toPersist);
return Id;
}
The most efficient way is to have one or a few root objects
that you look up by the object identifier as in:
ImdbRoot imdbRoot =
(ImdbRoot)session.Open(session.DatabaseNumberOf(typeof(ImdbRoot)),
2, 1,
false);
When you open an object this way, all objects referenced by the object is
also connected to the object so then to reach related objects all you need to
do is navigate to related objects such as in:
imdbRoot.ActingByNameSet
BTreeSet<Word>
wordSet = indexRoot.lexicon.wordSet;
Another way to lookup objects is by using a LINQ query such as:
var result = (from ComputerFileData
computerFileData in session.AllObjects<ComputerFileData>()
where computerFileData.FileID == 500000
select computerFileData).First();
or you can accomplish the same lookup without using LINQ as:
var computerFileDataEnum =
session.AllObjects<ComputerFileData>();
foreach (ComputerFileData
computerFileData in computerFileDataEnum)
{
if (computerFileData.FileID
== 500000)
break; //
found it
}
The third way is by looking up from a collection (usually a BTree) as
in:
doc.WordHit.TryGetValue(word, out
wordHit) or via an index lookup.
It is not OK to have variables like
static VertexType
movieType;
static PropertyType
movieTitleType;
static PropertyType movieYearType;
VelocityDB need to be notified when you want a change to an
object to be persisted. The safest way to do this, is to define a property for
every field your application data objects have, such as:
[FieldAccessor("m_bestFriend
")]
public Person
BestFriend
{
get
{
Session?.LoadFields();// Loads all fields of an object if they are not already
loaded.
return m_bestFriend;
}
set
{
Update(); // IMPORTANT, call Update() before updating object
m_bestFriend = value;
}
}
If updating a field that is NOT indexed you can avoid the
index update cycle by calling the object update function on SessionBase instead of OptimizedPersistable Update() as in
public string StreetAddress
{
get
{
return m_streetAddress;
}
set
{
UpdateNonIndexField();
m_streetAddress = value;
}
}
Note - Do not use any
VelocityDB API between Update() and the field update or a VelocityDB API as
part of part of the field update otherwise the update may not be persisted as
this can cause the object page to be flushed.
VelocityDB collection classes like VelocityDbList<T>, BTreeSet<Key> and BTreeMap<Key, Value> calls update automatically
internally so you don’t need and should not call Update() when modifying such
collections.
When updating objects that are not implementing IOptimizedPersistable,
call session.UpdateObject. BindingList<MyItem> is such a case. Exception are: List<>,
arrays and ValueType objects when embedded in an object that implements IOptimizedPersistable.
For such lists call Update() on the object embedding the list.
public class MyContainer : OptimizedPersistable
{
private BindingList<MyItem> m_items;
public BindingList<MyItem>
Items {
get { return m_items;
}
}
public MyContainer()
{
m_items = new BindingList<MyItem>();
}
public bool UpdateBindingList(SessionBase
session)
{
return session.UpdateObject(m_items);
}
}
Use OptimizedPersistable.Unpersist or Page.UnpersistObject or SessionBase.DeleteObject.
You can override the default implementation of public virtual void Unpersist(SessionBase
session, bool disableFlush = true), i.e.
public override void
Unpersist(SessionBase session, bool
disableFlush = true)
{
if (id == 0)
return;
if (comparisonByteArrayId != 0)
{
comparisonBytesTransient = (BTreeByteArray)session.Open(comparisonByteArrayId);
comparisonBytesTransient.Unpersist(session, disableFlush);
comparisonByteArrayId = 0;
}
nodeList.Unpersist(session, disableFlush);
base.Unpersist(session,
disableFlush);
}
When removing an object from a database, it is important
that references to this object also are removed. Otherwise such references may
end up referencing some other object or become a null reference.
It is recommended that you maintain two way relation (bidirectional)
as much as possible because that makes it easier to cleanup references and also
to diagnose dangling references when they occur.
Interface IReferenceTracked and class ReferenceTracked
was added as an aid to maintain referential integrity. A simple sample project
named Relations shows how this API can be used.
With VelocityDBList, each list gets an Id, with List
not. You can share VelocityDbList between multiple objects, not List.
Sample3 uses List, Sample4 uses VelocityDbList. See difference in
DatabaseManager below. Sample4 has a database 20 containing VelocityDbList
objects.
Serialization and deserialization are highly
efficient with VelocityDB but when a class implements ISerializable that optimization is lost, and we must use the custom
code for serialization and deserialization the type provides as methods.
For Dictionary that code is:
protected Dictionary(SerializationInfo info, StreamingContext context) {
//We can't do anything
with the keys and values until the entire graph has been deserialized
//and we have a
resonable estimate that GetHashCode is not going to fail. For the time
being,
//we'll just cache
this. The graph is not valid until OnDeserialization has been called.
HashHelpers.SerializationInfoTable.Add(this, info);
}
[System.Security.SecurityCritical] //
auto-generated_required
public virtual void GetObjectData(SerializationInfo info, StreamingContext context) {
if (info==null) {
ThrowHelper.ThrowArgumentNullException(ExceptionArgument.info);
}
info.AddValue(VersionName, version);
#if FEATURE_RANDOMIZED_STRING_HASHING
info.AddValue(ComparerName, HashHelpers.GetEqualityComparerForSerialization(comparer), typeof(IEqualityComparer<TKey>));
#else
info.AddValue(ComparerName, comparer,
typeof(IEqualityComparer<TKey>));
#endif
info.AddValue(HashSizeName, buckets == null ? 0 : buckets.Length); //This is the length
of the bucket array.
if( buckets != null) {
KeyValuePair<TKey, TValue>[] array = new KeyValuePair<TKey, TValue>[Count];
CopyTo(array, 0);
info.AddValue(KeyValuePairsName, array, typeof(KeyValuePair<TKey, TValue>[]));
}
}
This also makes the objects use up more
space as persistent. Instead of persisting Dictionary use VelocityDB collection
BTreeMap and instead of HashSet use BTreeSet.
Using the provided
BTree collections
Just about all object oriented applications need to use collections.
VelocityDB provides BTree
collections which are similar to BTree’s of the variety B*. A BTree is a
collection where the added objects are sorted. An application can define the
sort order by defining a subclass of VelocityDbComparer<Key> or by using the class CompareByField<Key>, a collection may also
have a null comparator in which case the
objects are ordered by the object identifier or by the ValueType ordering as defined
by the objects public override
int CompareTo(object
obj) implementation. The BTree comes in a few varieties, a key only
version and a key value version. They also have a long object Id (db-page-slot)
version and a short Id (page-slot) version. A BTree can be used with comparisonByteArray data
which is used to cache object key data within the BTree nodes so that when a
binary search takes place we can avoid opening objects to compare. When you use
the predefined class CompareByField<Key> it is easy to add comparisonByteArray data to the
BTree nodes, you just specify how many bytes per object it should be and
whether the cached node byte contains the entire data being compared when
deciding if one object is less, equal or greater compared to another. If you
customize building your own comparator, managing the comparisonByteArray
becomes a little trickier; on the compare class you need to define SetComparisonArrayFromObject as
in:
public override
void SetComparisonArrayFromObject(Word key, byte[]
comparisonArray, bool oidShort)
{
Int32 hashCode = key.aWord.GetHashCode();
Buffer.BlockCopy(BitConverter.GetBytes(IPAddress.HostToNetworkOrder(hashCode)), 0,
comparisonArray, 0, comparisonArray.Length);
}
In this case we are sorting by the hash code of a string, the
corresponding compare function in this case looks like:
public override
int Compare(Word
a, Word b)
{
UInt32 aHash = (UInt32)
a.aWord.GetHashCode();
UInt32 bHash = (UInt32)
b.aWord.GetHashCode();
int value = aHash.CompareTo(bHash);
if (value != 0)
return value;
return a.aWord.CompareTo(b.aWord);
}
A problem here is that a String GetHashCode() returns different values on
a 32 bit platform then a 64 bit platform. To make your data cross platform
compatible don’t use the string GetHashCode, instead build your own string hash
code function. We do so in the VelocityDB build in class HashCodeComparer<T>.
Btree classes
provided:
·
BTreeSet<Key>
·
BTreeSetOidShort<Key>
·
BTreeMap<Key, Value>
·
BTreeMapOidShort<Key, Value>
Sample usage:
public Lexicon(ushort
nodeSize, HashCodeComparer<Word> hashComparer, SessionBase
session)
{
wordSet = new BTreeSet<Word>(hashComparer, session, nodeSize);
}
Represents a collection of keys that is maintained in sorted
order. Each key has an associated value. A persistent BTree references its
contained objects by Oid instead of direct object references. This way, we will
only open the referenced objects on demand which reduces memory usage and
initial BTree load time. Exceptions are ValueType keys and values. For more see
https://velocitydb.com/Help/html/f12b67ba-577a-7b2e-43a4-d489688f753e.htm
Indexes
Indexes is a simplified, automated, way of implicitly
defining and keeping BTreeSet<Key>s
up to date when objects are added, deleted and updated. An index is defined by
using the class or field [Index] attribute. Indexes
for a persistent Type is stored in its own system selected database, the range
of databases used is between 66000 up to 66000 + the number of Types and
versions of a type that your application store persistently. An object gets
added to its indexes when an object is persisted. Make sure to set all indexed
fields to desired indexed values before persisting object. When an indexed
object is updated, its indexes get updated when the page of the objects gets
flushed to disk. You can force it to be flushed to disk and have the index
updated by calling Write() on the object you updated (after you made the
changes and object is an OptimizedPersistable). If you made a change that does
not affect the index, you did not modify an indexed field, you don’t need to
update the index explicitly since the index is unaffected. An object is removed
from its indexes when it is unpersisted and when Update()
is called. If you want to index objects separately for each Database, tag the
class or field with the attribute [OnePerDatabase]. Before
modifying an indexed field, it is important to call Update() on the object
having the field before doing the update because the object needs to be removed
from its indexes before updates or else the removal code will fail to find the
object in its indexes leading to an index corruption. Call FlushUpdates() or FlushUpdates(Database db) on the session
after the changes have been made to add it back to indexes. Use only with
subclass of OptimizedPersistable.
Starting in VelocityDB 4.5, we added a feature that reliefs
the main database thread from the work of adding objects to indices. This
feature is available with SessionNoServerShared. You can make
the indexing happen in the main database thread by setting session.AddToIndexInSeperateThread = false; If object indexed contains an [OnePerDatabase] index then indexing will happen in
main session thread.
When you want an index with compound keys, like order by lastName
and then if two or more lastnames are equal by firstName and if
two or more firstNames are equal, order these otherwise equal objects by
yet another field name and so on. We currently only allow one class level index
(by multiple compound keys) per class.
[Index("modelYear,brandName,modelName,color")]
public abstract class Vehicle : OptimizedPersistable
{
string color;
int maxPassengers;
int fuelCapacity; // fuel capacity in
liters
double litresPer100Kilometers; //
fuel cunsumption
DateTime modelYear;
string brandName;
string modelName;
int maxSpeed; // km/h
int odometer; // km
You can also use the class level Index attribute without specifying any
field names; in that case the contained objects are sorted by the default
ordering of the class which is normally by Oid (Id).
To iterate all Cars in index
sorted order
foreach (Car c in
session.Index<Car>())
Console.WriteLine(c.ToStringDetails(session));
This type of index sorts all persistent instances of a class by a field value.
Note that in order to use this type of index in a LINQ query, you need to tell
us what property that returns the value of the field. You do that by the FieldAccessor
attribute as in sample class below. The [UniqueConstraint]
attribute can be added when you don’t want multiple objects with the same field
value in the index. An exception is raised if you add a second object with the
same field value when [UniqueConstraint]
is applied to the field. The [IndexStringByHashCode]
attribute can also be added to string field indexes when you don’t care about
the sort order. Sorting by hash code is faster than sorting by the normal
string ordering.
public class InsuranceCompany : OptimizedPersistable
{
[Index]
[UniqueConstraint]
[OnePerDatabase]
string name;
string phoneNumber;
public InsuranceCompany(string
name, string phoneNumber)
{
this.name = name;
this.phoneNumber = phoneNumber;
}
[FieldAccessor("name")]
public string Name
{
get
{
return name;
}
}
}
Using the index by field
in a LINQ query
In every source file that uses an index in a query, it is
important to have
using static
VelocityDBExtensions.Extensions.BTree.BTreeExtensions;
This activates the BTree
extension methods that overrides the default Enumerable versions. You
should see much improved performance when using the extension methods. The
following extensions methods are defined:
static public IEnumerable<Key>
Where<Key>(this BTreeBase<Key, Key>
sourceCollection, Expression<Func<Key, bool>>
expr)
static public int
Count<Key>(this BTreeBase<Key, Key>
sourceCollection)
Let us know if you want other
“slow” method overrides of Enumerable with BTree.
The extensions are located in a separate assembly, so you
will also need to add a reference to it or use the VelocityDBExtensions NuGet.
If you don’t want to drag in all the additional assembly
references, we are currently duplicating the BTree extensions code within the
VelocityDB assembly.
So you can use using static VelocityDb.Collection.BTree.Extensions.BTreeExtensions; instead to
avoid these additional dependencies. We put this code in the open source
VelocityDBExtensions so that YOU could help us improve this complicated
expression tree code! Any assistance is appreciated and will be rewarded with a
VelocityDB license discount.
var q = from company in
session.Index<InsuranceCompany>("name")
where company.Name == "AAA" select
company;
foreach (InsuranceCompany
company in q)
Console.WriteLine(company.ToStringDetails(session)); // only one will match
Enable index usage trace
Not every LINQ query will end up using the fast path with
direct index lookups instead of the default Enumerable.Where,
this can be because your query contains non indexed fields or because the linq
query somehow does not match the Enumerable.Where extension provided with
VelocityDB. To find out, enable index tracing by calling session.TraceIndexUsage = true;. If index is used by a query then you
will see output to Console like:
20:42:12:982 Index used with
BTreeSet<Country> 66206-1-1
If index is not used, there will be no output
to Trace. If you also want output to Console add the code: Trace.Listeners.Add(new ConsoleTraceListener());
Simplify the query as much as possible
The following query will use the fast path
BTreeSet<Country>
countryIsoIndex = session.Index<Country>("ISO");
string homeCountry =
(string)airline_element.Element("Home_Country");
var res_country_q = from
country in countryIsoIndex
where
country.I_ISO ==
homeCountry
select
country;
Country
res_country =
res_country_q.FirstOrDefault();
The following equivalent will use the slow non VelocityDB
enumeration. The thing that makes it not use the VelocityDB extension is
specifying the type of country (Country country). Leave it out and it will be
much faster! Anyone knows why???
var res_country =
(from Country
country in session.Index<Country>("ISO")
where
country.I_ISO ==
(string)airline_element.Element("Home_Country")
select country).First();
Changing indexing is handled the same way as any changes to
a class definition. For example, if you start out with the following class
definition and you commit some
[Index("modelYear,brandName,modelName,color")]
public abstract class Vehicle :
OptimizedPersistable
{
[Index]
string color;
int maxPassengers;
int fuelCapacity; // fuel capacity in
liters
[Index]
double
litresPer100Kilometers; // fuel cunsumption
[Index]
[UniqueConstraint]
Guid guid
= Guid.NewGuid();
DateTime
modelYear;
[Index]
[IndexStringByHashCode]
string brandName;
string modelName;
List<VelocityDbSchema.Person>
owners;
int maxSpeed; // km/h
int odometer; // km
AND later change it to
[Index("modelYear,brandName,modelName,color")]
public abstract class Vehicle :
OptimizedPersistable
{
string color;
int maxPassengers;
int fuelCapacity; // fuel capacity in
liters
[Index]
double
litresPer100Kilometers; // fuel cunsumption
[Index]
[UniqueConstraint]
Guid guid
= Guid.NewGuid();
DateTime
modelYear;
[Index]
[IndexStringByHashCode]
string brandName;
string modelName;
List<VelocityDbSchema.Person>
owners;
int maxSpeed; // km/h
[Index]
int odometer; // km
You will need to convert all your existing Vehicle objects to this updated class definition.
session.UpdateClass(typeof(Vehicle));
foreach (var v in
session.AllObjects< Vehicle >())
{
v.UpdateTypeVersion();
}
This code will remove all Vehicle objects from the “string
color” index and will create a new index and add all Vehicle to “int odometer”
index.
Make sure that your process is not running as a 32-bit
process on a 64-bit Windows, as a 32-bit process you will get the
OutOfMemoryException at around 1.5 GB. Use the Task Manager as a way to
determine if your process runs as a 64bit process. 32-bit processes has their
name appended with the string “(32 bit)”, also do not use the “Visual Studio
Hosting Process” – it’s in your projects Debug options - if it is running as a
32 bit process. If your project is using .NET 4.5 make sure that you do not
have the option “Prefer 32 bit” set. If this isn’t set but your process still
is 32 bit then change to use .NET 4.0 as a work around. If you absolutely need
to run your process as 32-bit then tell VelocityDB to limit its caching by
setting: DataCache.MaximumMemoryUse
= 1100000000; to limit the memory
usage.
When an object is opened by a session object, all object
referenced by that object are also brought into memory. In some cases that
isn’t desired. You can limit the size of such graphs by using WeakReferenceList
or the BTree
collections which avoids bringing in all the contained objects. These
collections avoids bringing in all referenced objects by not having straight
forward C# object references everywhere; instead references are replaced by the
object identifier of the referenced object, as in:
internal UInt64
comparisonByteArrayId;
internal UInt64[]
keysArray;
internal UInt64[]
valuesArray;
Here each UInt64 is the Id of some persistent
object. The BTree fetches such objects on demand:
internal override Key
GetKey(int index)
{
if (IsPersistent && UseAlternateKeys == false)
return Session.Open<Key>(keysArray[index]);
else
return keysArrayAlternate[index];
}
For single non array references VelocityDB provides WeakIOptimizedPersistableReference<T> as in:
aMan.spouse = new WeakIOptimizedPersistableReference<VelocityDbSchema.Person>(aWoman);
to get the value use public T GetTarget(bool
update, SessionBase session).
You can examine how large a loaded object graph might be by
examining the Schema Type Connections using the Database Manager.
Here is one example that we use with the AllSupported sample
project.
public class WeakReferencedConnection<T> :
OptimizedPersistable where T : OptimizedPersistable
{
UInt64
_objId;
static
WeakReferencedConnection()
{
var list = new List<Type> { typeof(T) };
Schema.WeakReferencedTypes[typeof(WeakReferencedConnection<T>)]
= list; //
register this weak reference with schema so that DatabaseManager can recognize
this as being a weak referenced object
}
public
WeakReferencedConnection(T t)
{
if (!t.IsPersistent)
throw new
PersistedObjectExcpectedException("Persist first");
t.Session.Persist(this);
_objId = t.Id;
}
public T
MyWeakReferencedObject
{
get
{
return
Session.Open<T>(_objId);
}
}
}
A benefit of using only weak references is that object
caching can be optimized. If your application only uses weak references, such
as the case with schema used with VelocityGraph, you can set:
SessionBase.ClearAllCachedObjectsWhenDetectingUpdatedDatabase = false;
This way you preserve object cache for objects in databases
that are up to date in cache. Only objects in a database that is found to have
been updated by another transaction is invalidated. This can be a significant
performance boost depending on how often updates occur.
Another way of limiting what gets loaded when an object is
open is the LazyLoadMembers property on OptimizedPersistable
/// <summary>
/// By default all fields are loaded when opening a persistent
object but an option is provided to load members on demand (lazy loading).
/// </summary>
public virtual bool LazyLoadFields
{
get
{
return false;
}
}
When a class uses lazy loading of fields, each field access
must make sure the field is loaded first.
public LazyLoadPropertyClass
MyRef
{
get
{
Session?.LoadFields();
return myRef;
}
set
{
Update();
myRef = value;
}
}
An alternative to the lazy load property is to specify depth
to load at object open.
LazyLoadByDepth lazy = (LazyLoadByDepth)session.Open(id, false, false, 0); // load only the root
of the object graph
Session caching of
databases, pages and slots
Each session object maintains a cache of databases, pages and slots. The
caching is mostly using weak references. Database pages also have a strong
reference cache which is released when available memory is low. By default
objects and pages are cached with strong references, unless you override the
session constructor parameters for this, but if an object’s class overrides the
Cache property, object caching may not happen for that type of objects. If a
cashed Database is found to be out of date, all objects cached are released
(even objects cached for other Databases). This is to be sure we don’t end up
using stale objects indirectly via object references.
Strong reference caching can be disabled by creating the session instance
with a parameter that disables caching.
Avoid having strong references to persistent object between transactions
since a strong referenced object cannot be updated in case the object was
updated by another session. Look up persistent objects from scratch in each new
transaction so that stale objects can be avoided.
Here is an example of how to create a session without strong referenced
page cache and without string object cashing:
using (SessionNoServer
session = new
SessionNoServer(s_systemDir, 5000, optimisticLocking: false, enablePageCache: false, objectCachingDefaultPolicy: CacheEnum.No)) {}
Some sections of your code might benefit from object/page caching while
other sections do not. You can control the caching as done below.
session.ObjectCachingDefaultPolicy
= CacheEnum.No; // the following
processing works faster without object caching when < 40GB memory not
available
session.ClientCache.PageCacheEnabled
= true; // strong reference
page caching is beneficial in this case
It is also possible to enable object/page caching for selected databases.
These settings don’t persist, it is just until such objects/pages are purged
from memory due to memory usage limitations or due to updates from other
transactions. Such selected settings are useful when ingesting a billion
objects with indexing. Turn on caching of indexing objects and its pages but
not for the billion objects!
root.Page.Database.PageCacheEnabled
= true;
root.GeoHashToNode.Page.Database.PageCacheEnabled
= true;
UInt32 dbNum =
session.DatabaseNumberOf(typeof(BTreeLeaf<Int64, Node>));
Database db = session.OpenDatabase(dbNum,
false, false);
if (db != null)
db.PageCacheEnabled
= true;
root.Page.Database.ObjectCachingDefaultPolicy
= CacheEnum.Yes;
root.GeoHashToNode.Page.Database.ObjectCachingDefaultPolicy
= CacheEnum.Yes;
Databases are cached using weak references by default but you can force
use of strong references to existing databases using api on SessionBase.
session.CrossTransactionCacheAllDatabases();
session.CrossTransactionCache(db,
true);
When you notice that something isn’t the way it should be,
maybe something is taking longer than expected, there is useful option you can
turn on that logs all activities related to all database files or files of
selected databases.
To turn on tracing for a specific database (in this case
database 55), use SessionBase api: session.SetTraceDbActivity(55);
To turn on tracing of all databases use: session.SetTraceAllDbActivity();
A VelocityDB application should handle exceptions thrown by
the VelocityDB kernel.
try
{
using (SessionNoServer
session = new SessionNoServer(systemDir))
{
session.BeginRead();
…
session.Commit();
}
}
catch (Exception
ex)
{
Console.WriteLine(ex.ToString());
}
Here is a list of the current possible VelocityDB
exceptions:
AlreadyInCommitException
AlreadyInTransactionException
DatabaseAlreadyExistsException
DatabaseDoesNotExistException
DatabaseReadLockException
DesKeyMissingException
FieldDoesNotExistException
IndexDatabaseNotSpecifiedException
IndexDatabaseOrBTreeMissingException
IndexDatabaseSpecifiedForGlobalIndexException
InternalErrorException
InTransactionException
InUpdateTransactionException
InvalidChangeOfDatabaseLocation
InvalidChangeOfDefaultLocationException
MaxNumberOfDatabasesException
NotInTransactionException
NoValidVelocityDBLicenseFoundException
NullObjectException
ObjectDoesNotExistException
ObjectNotInSameDatabaseAsOidShortCollectionException
OpenDatabaseException
OptimisticLockingFailed
PageDeadLockException
PageDoesNotExistException
PageReadLockException
PageUpdateLockException
PersistedObjectExcpectedException
RequestedPlacementDatabaseNumberNotValidException
RequestedPlacementPageNumberNotValidException
SubscriptionsNotAvailableWithNoServerSessionException
SystemDatabaseNotFoundWithReadonlyTransactionException
TryingToBeginReadOnlyTransactionWhileInUpdateTransactionException
TryingToDeleteDeletedDatabaseException
UnexpectedException
UniqueConstraintException
UpdateLockFailedException
WeakReferenceMustBePersistentException
Database Manager
Use DatabaseManager for administrating all your databases. Using
Database Manager is a great way to inspect your data, making sure it looks the
way you expect it. DatabaseManager is available in the sample VelocityDB.sln
provided with the VelocityDB download.
Startup Database Manager (it is in your Start menu). Before
you start it you may want to look at DatabaseManager.exe.config in your
installation folder and change settings to fit your case. You also want to put
your VelocityDB license database, 4.odb, into the DatabaseManager database
folder.
An initial admin database is created. This database contain
info about all other databases you “Add” to the Database Manager.
This means you will need to make sure your objects are fully
loaded when the object ToString method is called. If you override Tostring()
and it uses non primitive fields to render string, first call Session.LoadFields(this); to
make sure all required fields are loaded.
Objects are automatically loaded once you drill down into
child objects.
Click on the “Add” menu item.
Click Browse… to find the directory of your Baseball
databases (build & run this sample first if you have not) then add the
VelocityDBSchema.dll to list of classes assemblies and click OK button. Click
on arrows to expand.
Run SessionBase.Validate() on your databases. It checks to make
sure that all objects in your databases can be opened without errors.
If all is good
You now have a copy of the Baseball databases in a new
folder. You can add this folder to the Database Administrator if you like.
Database
Schema Connections
Click on Database Manager menu bar “Schema Connectivity”, a
second window is opened.
This window shows how the types of your persisted objects
are connected via direct (strong) object references and via indirect (weak)
references.
It is possible to hide all weak references by right click on
“Internal built in types or User defined types.
We will go through a simple scenario for this. Using a
backup DatabaseLocation is not a one-time backup of your databases. When you
create a backup DatabaseLocation a contiguous backup of all changes to the
backed up DatabaseLocation starts and continues forever. The backing up is
managed by the VelocityDBServer whenever you commit a change. All history of your
changes is by default kept in the backup DatabaseLocation.
Startup Database Manager
An initial admin database is created. This database contain
info about all other databases you “Add” to the Database Manager. Now click
on the “Add” menu item.
Fill in the requested data and click on OK
Right click on the newly created database and select “New
DatabaseLocation…”
Fill in requested DatabaseLocation data like above and click
on OK. Expand to see the new DatabaseLocation.
We now have some persistent objects and a backup of all data
in original DatabaseLocation.
Manually delete 16.odb in original DatabaseLocation
TO (by deleting using file Explorer)
Be sure to expand before deleting the files!
Your database file is now restored in your original
DatabaseLocation.
A backup DatabaseLocation can be used to create a new set of
databases on a new host and directory. Given the backup made in prior section,
we will show how to use it to create a new DatabaseLocation in a new directory.
Startup DatabaseManager and click on “Add”
Fill in data like above. The above “Database Number”
correspond to the first database in the backup DatabaseLocation, by default we
set it to 100000000. Click OK.
You now have a brand new DatabaseLocation with all the data
backed up in the backup DatabaseLocation.
Here is how to set it up. Start by downloading and
installing LINQPad from http://www.linqpad.net/.
Start it. It should look like this:
Click on “Add connection”, takes you to this:
Click on “View more drivers…”, takes you to this:
Click on “Browse…”, select the file VelocityDBLinqPad.lpx
from your VelocityDB installation directory
Then select the VelocityDB data context and click on “Next
>”
You should now see:
Choose DB Directory and Assemblies. Choose the assembly
where your persisted classes are defined. If these are defined in an .exe file
you may have to move them to a library project instead and reference it from
your .exe.
Then press “OK”, should take you to this (in this case using
Sample3 database directory from VelocityDB.sln samples)
Scroll down to “Sample3_Persons”, select and right click
with mouse, choose “Sample3_Persons.Take(100)”
Result should now show as:
Proper class names are not displayed, above
“Sample3_Persons” should really be ‘VelocityDbSchema.Samples.Sample3.Person” as
shown when you expand to see properties. Also objects and classes of template
classes are not included. We’ll try to resolve these issues as soon as possible
but it’s tricky due to using properties to expose each class and property names
cannot have the characters “.<>” in them.
Controlling the in
memory page and object caching
Be default VelocityDB tries to cache database pages whenever there is
enough available RAM memory. You can control how much enough RAM memory is by
API on the DataCache
object that is accessed from a session object by the property ClientCache. You can also
completely turn off page caching by specifying this as one of the optional
parameters when creating a session. Object caching is also supported, see how
to here.
The Verify.exe application provided in the sample solution
can be used to verify your data. Run Verify.exe and specify as command line
parameter the directory where your databases are located. Verify.exe walks
through all objects and opens all their references and it iterates though all
enumeration types such as BTreeSet and other collections. An exception will be
thrown if a failure is found. You can also verify all objects by API using
SessionBase.Verify().
A single session can manage uncompressed data at a maximum size
of a half trillion terabytes (half a yottabyte). To reach that maximum size you
need 4 billion databases (.odb files) with 65 thousand pages in each and each
page size near 2 GB. An application can simultaneously use multiple sessions so
total data size is unlimited.
·
2 GB is maximum size for a page. Limit is due to .Net 2GB
limitation of byte[].
Given this 2GB size limitation, it is not possible to
persist objects such as Dictionary<TKey, TValue>
that are larger than 2 GB. However, our BTree and BTreeMap collections can be
used because they are composite objects where each each objects is smaller than
2GB no matter how large the total size of the collection (or map).
Database backup is an option on each DatabaseLocation, you can request
that all databases of a specified DatabaseLocation are backed up to a backup DatabaseLocation.
This API is currently only supported with ServerClientSession.
The following code create a backup DatabaseLocation for the default DatabaseLocation
(the one containing the system database 0, 1, 2, and 4)
using (ServerClientSession
session = new ServerClientSession(systemDir,
Dns.GetHostName()))
{
const bool
isBackupLocation = true;
session.BeginUpdate();
DatabaseLocation backupLocation = new DatabaseLocation(Dns.GetHostName(),
"c:/NUnitTestDbsBackup",
(uint)Math.Pow(2,
24),
UInt32.MaxValue,
session,
false,
PageInfo.encryptionKind.noEncryption,
isBackupLocation,
session.DatabaseLocations.Default());
session.NewLocation(backupLocation);
session.Commit();
}
From now on,
every time a default DatabaseLocation database is created/updated, it will be backed up to the
backup DatabaseLocation.
The following code restores the default DatabaseLocation
from its backup.
using (SessionNoServer
session = new SessionNoServer(systemDir))
{
session.BeginUpdate();
DatabaseLocation backupLocation = new DatabaseLocation(Dns.GetHostName(), "c:/NUnitTestDbsBackup",
(uint)Math.Pow(2,
24), UInt32.MaxValue, session,
false, PageInfo.encryptionKind.noEncryption, true, session.DatabaseLocations.Default())
session.RestoreFrom(backupLocation, DateTime.Now);
session.Commit(false, true);
}
A fast and easy way to backup your databases is to use
SessionBase.CopyAllDatabasesTo, as in
using (ServerClientSession
session = new ServerClientSession(systemDir))
{
session.CopyAllDatabasesTo(copyDbsDir);
}
using (SessionNoServer
session = new SessionNoServer(copyDbsDir))
{
session.BeginRead();
session.Verify();
session.Commit();
}
SessionBase provides a to and from CSV file option. The CSV
export files contains one csv file for each Type stored in the databases.
This is a server process that manages data transfer between
client and server hosts. It also handles the page/database locking and manages
a shared cache. The use of this server process is optional but is requires in
order to distribute databases and the server is also required when page level
locking is requested.
VelocityDbServer.exe is installed as a service unless you
did the install choosing VelocityDbNoServer.exe. You can configure it using the
Windows Computer Management
If you don’t want it running as a service, you can remove it
after stopping by the command: sc delete VelocityDbServer. Or simply change the
“Automatic” start to “Manual” start.
The server can be started from command line:
VelocityDbServer true 10
Substitute “10” with how many worker threads you want it to
use for each system database directory (one containing 0.odb, 1.odb, 2.odb
4.odb) this server is serving. The process runs as background process. A non-service
VelocityDbServer is stopped by using the Task manager.
In order to distribute databases to multiple hosts, you need
to install VelocityDb on each host where you want to place databases.
The VelocityDbServer is communicating on tcp/ip port number:
7031. This server can only handle .NET clients, not .net core clients.
.net core clients use port 7032 instead and the server is VelocityDbCoreServer. Both these
servers are installed as services by the installer.
Make sure that your Firewall lets VelocityDbServer
listen/talk to other hosts with VelocityDbServer running on them.
If you are experiencing issues with the VelocityDbServer, it
may help to look at the VelocityDBServerLog in the Event log, as in
Edit VelocityDbServer.exe.config (in Program Folder
(x86)\VelocityDB)
<?xml version="1.0"?>
<configuration>
<startup><supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.0"/></startup>
<appSettings>
<add key="BaseDatabasePath" value="c:\Databases"/>
<add key="DoWindowsAuthentication" value="false"/>
<add key="NumberOfWorkerThreads" value="10"/>
</appSettings>
</configuration>
You can turn on a log of all activity in a VelocityDBServer
by setting the file path of ServerActivityLogFile. Set to empty string if you
don’t want it.
<?xml version="1.0"?>
<configuration>
<startup><supportedRuntime version="v4.0"
sku=".NETFramework,Version=v4.0"/></startup>
<appSettings>
<add key="BaseDatabasePath"
value="c:/Databases"/>
<add key="DoWindowsAuthentication"
value="false"/>
<add key="NumberOfWorkerThreads"
value="10"/>
<add key="ServerActivityLogFile"
value="d:/serverLog.txt"/>
<add key="TcpIpPortNumber"
value="7031"/>
<add key="MaximumMemoryUse"
value="10000000000"/>
</appSettings>
</configuration><?xml version="1.0"?>
By default, VelocityDbServer is communicating on tcp/ip port
number: 7031.
If you need to use a different port number, set SessionBase.s_serverTcpIpPortNumber and update VelocityDBSerber.exe.config
(in VelocityDB installation directory) of each VelocityDB installation where
you want this change.
By default Windows Authentication is now disabled when
connecting to a VelocityDBServer. It is disabled by default due to a slight
performance cost when connecting to a server and also due to issues with making
it work with Windows 8.1 clients.
Edit VelocityDbServer.exe.config (in Program Folder
(x86)\VelocityDB)
<?xml version="1.0"?>
<configuration>
<startup><supportedRuntime version="v4.0" sku=".NETFramework,Version=v4.0"/></startup>
<appSettings>
<add key="BaseDatabasePath" value="c:\Databases"/>
<add key="DoWindowsAuthentication" value="false"/>
<add key="NumberOfWorkerThreads" value="10"/>
</appSettings>
</configuration>
In each of your clients set
SessionBase.DoWindowsAuthentication = true;
VelocityDBCoreServer
with http REST Api
Preview release of
VelocityDB http API via Asp.Net Core 3.1 server combined with regular
VelocityDBServer functions all in one. Connect as: localhost:7033/active, this server uses port 7032 for VelocityDBServer functions. .NET Core have a
mismatch with regular .NET in type names. Specifically noticed so far is
mscorlib -> System.Private.CoreLib.To test using this server
instead of regular .NET one, build a .netcore application using
ClientServerSession.
API will
eventually almost everything imaginable that can be done: retrieving object by
id, creating new objects, deleting
objects, updating objects, authentication…
What we probably will not support:
-
Creating new classes or other Type instances. DLLs containing the
application classes will have to be provided to server, so it can work with
such object instances.
Let us know what you would like to see in this https REST
API? We really appreciate all input. The source code of the
VelocityDBCoreServer will soon be included in our sample solution and on
GitHub.
In screen capture above we see an active database session
coming from DatabaseManager which includes a core server connection to
databases in Sample.
Here we use the excellent tool called Postman
Now back in Chrome browser we can see that object was
updated.
Not that we didn’t specify Id in the Json body of the
message.
To change settings you have to first stop the servers:
VelocityDBServer and VelocityDBCoreServer in the Services Window. You may have
to stop them multiple times as shutdown isn’t graceful right now and it
restarts. Windows makes it hard to edit the file. You may have to save edited
version somewhere else and then move the file via an Administrator command line
shell. Sorry about that.
Settings file is in: C:\Program Files (x86)\VelocityDB\core (or similar path from your Windows
drive)
The server needs access to your application schema
built as a .Net Core 3.1 library. A regular .Net library doesn’t work as
.Net Core Types differ from regular .Net (a Microsoft issue, not our). Specify
path in “Schema” section of the appsettings, if multiple separate with a ,.
With the formatter the JSON code looks much better!
An issue is that Install Shield LE 2013 does not support
64bit installers so installation ends up in Program Files (86) instead of
Program Files.
We use Install Shield LE 2013 which comes with Visual
Studio. For VelocityDbServer service install we create a merge module using WiX Toolset.
The latest version with Visual Studio 2013 is supposed to
support 64 bit installers but we have not figured out how to do it yet. Be
patient, we will solve it eventually or let us know how it’s accomplished!
.NET CORE
This version of the VelocityDB library lets you build portable apps that can
run on multiple platforms including: Windows, Linux and Mac. Reference
VelocityDBCore.dll in your app or install the VelocityDB NuGet.
This platform requires a default constructor as with Universal Windows. The API provided by .Net Core
libraries is not yet complete. Notably missing and causing
performance/functionality issues for VelocityDB are:
1. ResolveEventHandler
2. Assembly.LoadWithPartialName
3. Environment
4. public static Type GetType(string typeName,
Func<AssemblyName, Assembly> assemblyResolver, Func<Assembly, string,
bool, Type> typeResolver, bool throwOnError)
5. FormatterServices.GetUninitializedObject
6. AppDomain
7. Trace
Consequences of missing API include: each persisted class
must have a constructor with no parameters, a Type cannot be loaded if the
assembly version is changed so we’ll have to NOT update the assembly version of
VelocityDBCore.dll.
Most or all the above-mentioned missing API is now available
with .NET 5 (was .NET Core), .Net Standard 2.0 is no longer missing any of this
API.
Universal Windows
This version of the VelocityDB library lets you build native
Windows apps, compiles to machine code as with unmanaged C++ applications.
Reference VelocityDBUniversalWindows.dll in your app or install the VelocityDB NuGet.
This platform requires a default constructor as with .Net CORE. The API provided by Microsoft for Universal
Windows libraries is not yet complete. Notably missing and causing
performance/functionality issues for VelocityDB are:
8. System.Security.Cryptography
9. Thread
10. TcpClient
11. Environment
12. System.Reflection.Assembly
13. Assembly.LoadWithPartialName
14. Dns
15. public static Type GetType(string typeName,
Func<AssemblyName, Assembly> assemblyResolver, Func<Assembly, string,
bool, Type> typeResolver, bool throwOnError)
16. Type.GetTypeCode
17. DynamicMethod
18. FormatterServices.GetUninitializedObject
19. Console
20. AppDomain
21. Trace
Consequences of missing API include: each persisted class
must have a constructor with no parameters, a Type cannot be loaded if the
assembly version is changed so we’ll have to NOT update the assembly version of
VelocityDBUniversalWindows.dll.
We tested using this path: Windows.Storage.ApplicationData.Current.LocalFolder.Path;
We tried to set
the SessionBase.BaseDatabasePath
to this but then when ran
into errors while doing the obfuscation of the library. We will try again! No
obfuscation required with apps since they are compiled to binary code as with
C++!
The installation directory contains iOS\VelocityDB.dll and iOS\VelocityDB.xml,
add a reference to this DLL if you are targeting iOS for your application. Some
of the VelocityDB code is not as efficient on iOS due to System.Reflection.Emit
not being supported, see reasons here.
The installation directory contains Android\VelocityDB.dll
and Android\VelocityDB.xml, add a reference to this DLL if you are targeting
Android for your application. You can develop Android applications using Visual
Studio 2015 with Xamarin. We currently don’t have any sample applications but
follow the Android
Xamarin guides and ask us if you get stuck with how to use it with
VelocityDB.
A driver for storing user credentials in VelocityDB using Asp.Net
Identity is part of the VelocityDB.sln and a sample Web site, AspNetIdentitySample,
is also provided that uses asp.Net Identity with VelocityDB. These projects
require .Net 4.5.2 or higher.
Normally you need to deploy the license database, 4.odb, but
if you are publishing your application as open source or your database files in
a publicly accessible directory then do not include 4.odb since that would
enable unlicensed usage of VelocityDB. Instead register
all your persistent classes prior to deployment and deploy database 1.odb which
then contains your entire database schema. VelocityDB may do a license check
whenever database schema is added to or is updated.
The VelocityDB sample solution contains a sample web
application using VelocityDB, here we show you how to deploy this application.
Copy the entire directory named VelocityWeb to the root of
your hosting directory. We use FileZilla (free software).
